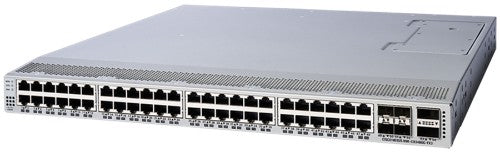

Cisco Nexus C9348GC-FX3 Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Gray

N9300 with 48p 100M/1GT, 4p 10/25G SFP28 and 2p 40/100G QSFP28 ports

Key Features

• Day-0 automation through Power On Auto Provisioning (POAP), drastically reducing provision time
• Industry-leading integrations for leading DevOps configuration management applications, such as Ansible. Extensive Native YANG, and industry-standard OpenConfig model support through RESTCONF/NETCONF/gNMI
• REST API interacting with Data Management Engine (DME)
• Model-driven telemetry enhances network observability
• Third-party application-hosting using Cisco Application Framework (CAF)

Description

The Cisco Nexus 9348GC-FX3PH Switch (Figure 5) is a 1RU switch that supports 696 Gbps of bandwidth and over 517 Mpps. The 40 1GBASE-T downlink ports on the 9348GC-FX3PH can be configured to work as 10-Mbps, 100-Mbps, or 1-Gbps ports. The last 8 downlink ports can be configured to work as 10-Mbps or 100-Mbps only. The 4 ports of SFP28 can be configured as 1/10/25-Gbps, and the 2 ports of QSFP28 can be configured as 40- and 100-Gbps ports, or a combination of 10, 25, 40,and 100-Gbps connectivity, offering flexible migration options. The last 8 ports are only half-duplex functionality and are limited to 10Mbps and 100Mbps speeds only. Supports power over ethernet. For details refer to Table 4.

Specifications

Management features
Switch layer	L2/L3
Switch type	Managed
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
USB 2.0 ports quantity	1
Fiber ports quantity	6
Fiber optic connector	QSFP28, SFP28
Number of management ports	2 pc(s)
Network
10G support	Yes
Data transmission
Switching capacity	696 Gbit/s
Throughput	517 Mpps
Packet buffer memory	40 MB
Design
Rack mounting	Yes
Product colour	Gray
DIN rail mounting	Yes
Form factor	1U
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943
Number of fans	3 fan(s)
Performance
Noise level	81.6 dB
Mean time between failures (MTBF)	329090 h
Built-in processor	Yes
Packet buffer memory	40 MB
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	226 W
Power consumption (max)	242 W
Power source	AC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Weight & dimensions
Width	17.3" (439 mm)
Depth	19.6" (499 mm)
Height	1.73" (44 mm)
Optical fiber
Fiber optic connector	QSFP28, SFP28
