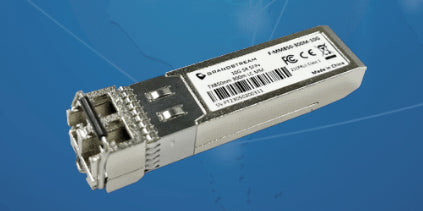

Grandstream Networks F-MM850-300M-10G network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm

Multi-Mode Fiber, Duplex LC, 850nm

Description

Fiber Modules
SFP/SFP+ Modules
Grandstream Network offers a wide variety of fiber modules. All of them are hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection. Featuring low power consumption, these fiber modules are ideal for enterprise LAN networks and other optical links.

Specifications

Performance
SFP transceiver type	Fiber optic
Interface type	SFP+
Maximum data transfer rate	10000 Mbit/s
Ethernet LAN	Yes
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Networking standards	IEEE 802.3ae
Maximum transfer distance	11811" (300 m)
Wavelength	850 nm
Tx power (min)	-6 dBmW
Tx power (max)	-1 dBmW
Rx power (min)	-11.1 dBmW
Rx power (max)	0.5 dBmW
Multi-mode fiber (MMF) supported	Yes
Ethernet interface type	10 Gigabit Ethernet
Product colour	Silver
Features
Product colour	Silver
Form factor	SFP+
Power
Input voltage	3.3 V
Power consumption (typical)	1 W
Certificates
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 85%
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Network
SFP transceiver type	Fiber optic
Interface type	SFP+
Maximum data transfer rate	10000 Mbit/s
Fiber optic connector	LC
Networking standards	IEEE 802.3ae
Ethernet interface type	10 Gigabit Ethernet
Weight & dimensions
Weight	0.653 oz (18.5 g)
Technical details
Ethernet LAN	Yes
Compliance certificates	RoHS
