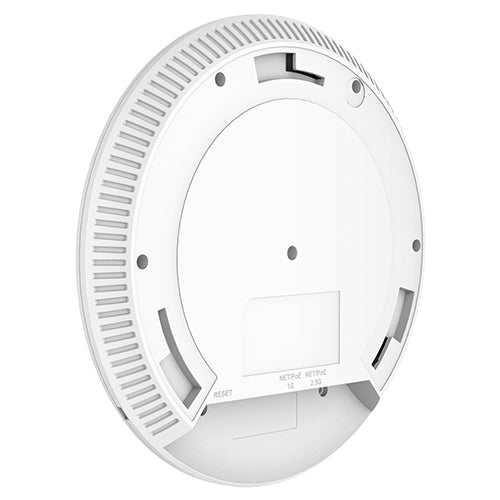

Grandstream Networks GWN7664E wireless access point 6000 Mbit/s White Power over Ethernet (PoE)

High-Performance AX6000 Wi-Fi 6 Access Point

Key Features

• 6Gbps aggregate wireless throughput, 5Gbps aggregate wired throughput
• Dual-band 4x4:4 MU-MIMO with DL/UL OFDMA technology
• Up to 175-meter coverage range
• Supports 512 concurrent Wi-Fi client devices
• Includes 2x 2.5G Ports
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self power adaptation upon auto detection of PoE or PoE+
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

Description

The GWN7664E is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for medium-to-large sized businesses, multiple-floor buildings, residential settings, and commercial locations.

GDMS Networking
GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

GWN Manager
GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

Embedded Controller
Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.

Specifications

Performance
Maximum data transfer rate	6000 Mbit/s
Ethernet LAN data rates	2500 Mbit/s
Spread spectrum method	OFDMA
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2400 - 2483.5, 5150 - 5895 GHz
Reset button	Yes
Quality of Service (QoS) support	Yes
Number of WLAN connections (max)	512
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum outdoor range	6889.8" (175 m)
MIMO type	Multi User MIMO
MIMO	Yes
Features
6 GHz	No
Maximum data transfer rate	6000 Mbit/s
Ethernet LAN data rates	2500 Mbit/s
Spread spectrum method	OFDMA
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2400 - 2483.5, 5150 - 5895 GHz
Quality of Service (QoS) support	Yes
Number of WLAN connections (max)	512
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum outdoor range	6889.8" (175 m)
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	1147 Mbit/s
Maximum data transfer rate (5 GHz)	4800 Mbit/s
Security
Security algorithms	SSID, WPA, WPA2-Enterprise, WPA2-PSK, WPA3
Number of SSID supported	32
Protocols
Supported network protocols	IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Power
Power consumption (max)	21 W
Power over Ethernet (PoE)	Yes
Design
Reset button	Yes
Placement	Ceiling, Wall
LED indicators	Yes
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antennas quantity	8
Antenna gain level (max)	4.5 dBi
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM
Weight & dimensions
Width	8.08" (205.3 mm)
Depth	8.08" (205.3 mm)
Height	1.81" (45.9 mm)
Weight	25.2 oz (714 g)
Package width	10.2" (258 mm)
Package depth	9.72" (247 mm)
Package height	3.39" (86 mm)
Package weight	2.34 lbs (1.06 kg)
Packaging data
Quick start guide	Yes
Mounting kit	Yes
Package width	10.2" (258 mm)
Package depth	9.72" (247 mm)
Package height	3.39" (86 mm)
Package weight	2.34 lbs (1.06 kg)
Packaging content
Quick start guide	Yes
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 60 °C
Logistics data
Quantity per pack	1 pc(s)
