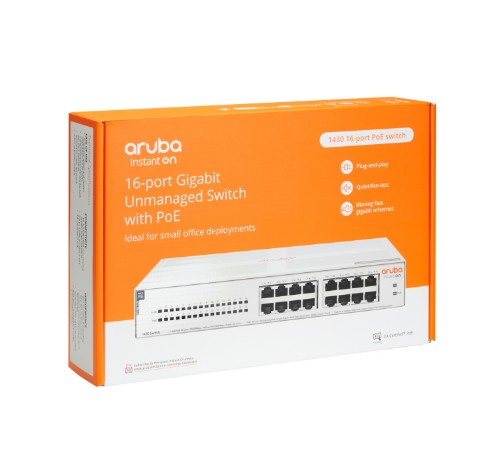

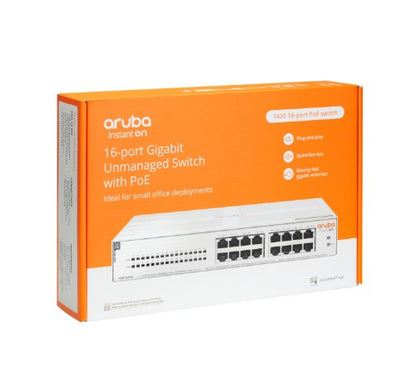

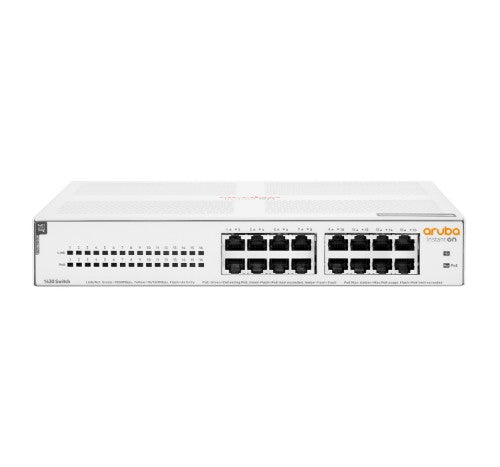

HPE Aruba Instant On 1430 16G Class4 PoE 124W Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

HPE Aruba Instant On 1430 16G Class4 PoE 124W, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting

Description

HPE Aruba Instant On 1430 16G Class4 PoE 124W. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8192 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting

Specifications

Performance
Stackable	No
Packet buffer memory	2 MB
Memory type	EEPROM
Management features
Switch layer	L2
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Flow control support	Yes
Auto-sensing	Yes
10G support	No
Half duplex	Yes
Data transmission
MAC address table	8192 entries
Switching capacity	32 Gbit/s
Throughput	23.8 Mpps
Latency (10-100 Mbps)	2.7 µs
Latency (1 Gbps)	1.8 µs
Packet buffer memory	2 MB
Design
Rack mounting	Yes
Stackable	No
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	147 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	124 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Width	10.8" (275 mm)
Depth	10.2" (260 mm)
Height	1.73" (44 mm)
Weight	4.61 lbs (2.09 kg)
