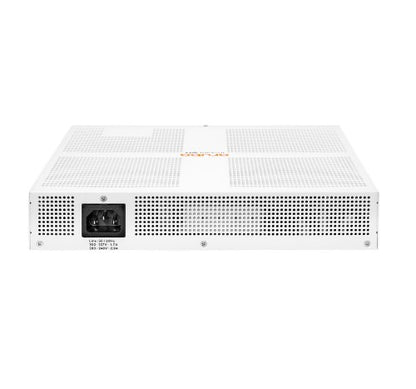

HPE Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

HPE Aruba Instant On 1930 8G Class4 PoE 2SFP 124W, Managed, L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Description

HPE Aruba Instant On 1930 8G Class4 PoE 2SFP 124W. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L2+
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	2
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Number of VLANs	256
VLAN support	Yes
Spanning tree protocol	Yes
Routing entries	32
Rate limiting	Yes
Link aggregation	Yes
Flow control support	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	No
IGMP snooping	Yes
Data transmission
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Jumbo frames	9216
Throughput	14.88 Mpps
Latency (10-100 Mbps)	5.2 µs
Latency (1 Gbps)	3 µs
Jumbo frames support	Yes
Number of VLANs	256
Security
Authentication	Port-based authentication
SSH/SSL support	Yes
Security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS
DHCP features	DHCP client
Design
Rack mounting	Yes
Stackable	No
Form factor	1U
Performance
Processor frequency	800 MHz
Memory type	SDRAM / Flash
Internal memory	512 MB
Flash memory	256 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Stackable	No
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	150.2 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	124 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Virtual LAN features
Number of VLANs	256
VLAN support	Yes
Weight & dimensions
Width	10" (254 mm)
Depth	6.28" (159.5 mm)
Height	1.73" (43.9 mm)
Weight	2.56 lbs (1.16 kg)
