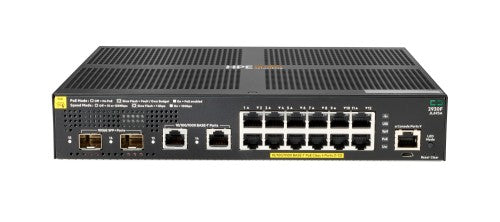

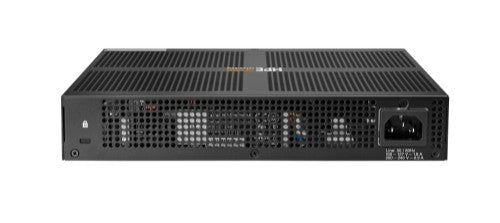

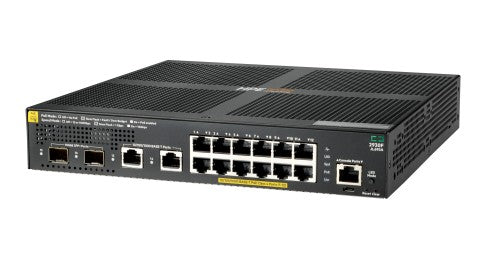

HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch

HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Reasons To Buy

High-performance Access Layer Switches

The HPE Aruba Networking 2930F Switch Series provides performance, security, and ease of use optimized for the digital workplace with unified management tools such as HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (Airwave), and HPE Aruba Networking Central.
Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.
Up to 8-member stacking with HPE Aruba Networking Virtual Switching Framework (VSF) and convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.
Provides optimal configuration automatically when connected to HPE Aruba Networking access points for PoE priority, VLAN configuration, and rogue AP containment.
Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting.

Performance and Power at the Edge

The HPE Aruba Networking 2930F Switch Series is designed with a powerful ProVision ASIC to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
HPE Aruba Networking Virtual Switching Framework (VSF) virtualizes up to eight physical switches into one logical device for simpler, flatter, more agile networks.
Supports up to 740W of internal PoE+ power for wireless access points, cameras and phones, depending on model.

Simplified Management for Your Network

The HPE Aruba Networking 2930F Switch Series supports HPE Aruba Networking ClearPass Policy Manager for unified, consistent policy between wired and wireless users, simplifying implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
HPE Aruba Networking Management Software (AirWave) provides an on-premise network management platform for wired and wireless network devices. Cloud-based management with Zero Touch Provisioning (ZTP) supported by HPE Aruba Networking Central.
RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.

Security and Quality of Service You Can Rely on

The HPE Aruba Networking 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.

Description

HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 12. Full duplex. MAC address table: 32768 entries, Switching capacity: 68 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	12
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	2
Copper ethernet cabling technology	10BASE-T
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Full duplex	Yes
Copper ethernet cabling technology	10BASE-T
VLAN support	Yes
Spanning tree protocol	Yes
Routing entries	10000
Rate limiting	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
IPv6 FIB entries	5000
IPv4 FIB entries	10000
Data transmission
MAC address table	32768 entries
Switching capacity	68 Gbit/s
Throughput	41.7 Mpps
Latency (1 Gbps)	3.8 µs
Latency (10 Gbps)	2.9 µs
Packet buffer memory	12.38 MB
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server
Multicast features
Multicast support	Yes
Protocols
Routing protocols	IP
IPv6 FIB entries	5000
IPv4 FIB entries	10000
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Form factor	1U
Performance
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	1024 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Stackable	Yes
Packet buffer memory	12.38 MB
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	90 - 264 V
AC input frequency	50 - 60 Hz
Power consumption (max)	170 W
Power consumption note	170W (maximum)
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	139 W
Other features
Latency	1,000 Mb latency: < 3.8 μs 10Gbps latency: < 2.9 μs
Performance management	HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central network management HPE IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
Memory and processor	Dual Core Arm Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress 4 GB eMMC
Weight (imperial)	4.85 lbs
I/O ports	12x RJ-45 autosensing 10/100/1000 PoE+ ports 2x SFP+ 1/10GbE ports 2x 1GbE ports PHY-less
Dimensions (W x D x H) (imperial)	1.73 x 10 x 10"
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Heat dissipation	68.2 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	1.73" (43.9 mm)
Depth	10" (254 mm)
Height	10" (254 mm)
Weight	4.85 lbs (2.2 kg)
IPv4 & IPv6 features
IPv6 FIB entries	5000
IPv4 FIB entries	10000
Logistics data
Harmonized System (HS) code	85176990
