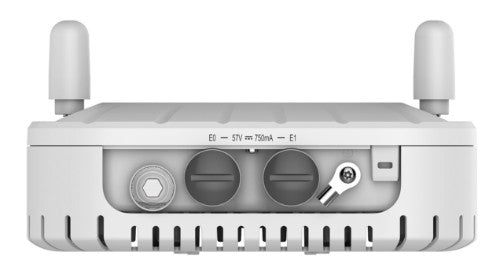

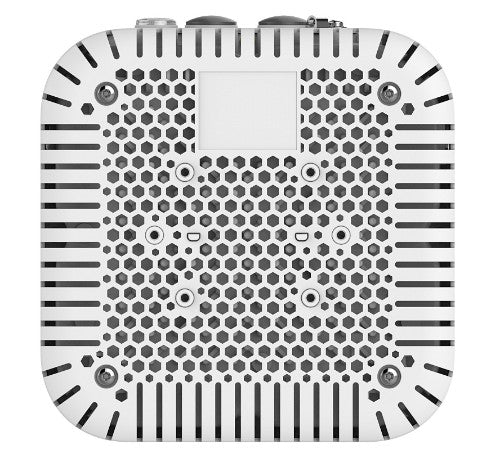

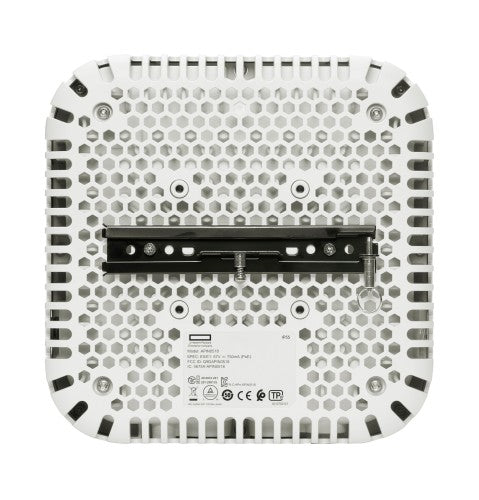

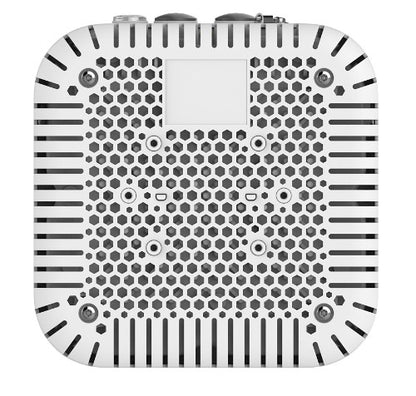

HPE Aruba Networking AP-518 (EG) Dual Radio 4x4/2x2 Wi-Fi 6 6xRPSMA Connectors Hardened AP

HPE Aruba Networking AP-518 (EG) Dual Radio 4x4/2x2 Wi-Fi 6 6xRPSMA Connectors Hardened AP, 2.4 GHz, 5 GHz, 1000,2500,5000 Mbit/s

Reasons To Buy

Ruggedized Wi-Fi 6

The HPE Aruba Networking 518 Series Hardened Access Points deliver maximum aggregate data rate of 2.69 Gbps (HE80/HE20) and can endure extreme temperatures, persistent moisture, precipitation, airborne contaminants, dust, salt sprays, and maximum 165 mph wind speeds.
Weatherproof and temperature hardened, this series can handle temperatures ranging from -40 ̊C to +65 ̊C, including full solar loading. All electrical interfaces include industrial strength surge protection.
The APs provide fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports.
It supports features such as orthogonal frequency-division multiple access (OFDMA), downlink MIMO (multiuser-MIMO), and target wait time (TWT).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signals.

IoT Ready

The HPE Aruba Networking 518 Series Hardened Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.
The 518 series supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio.
The target wake time (TWT) improves battery life of IoT devices.
HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

Enhanced Security

The HPE Aruba Networking 518 Series Hardened Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
The AP offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open (OWE) and user and IoT access policy enforcement firewalls (PEFs).
It simplifies policy enforcement by using the PEF to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the APs include an installed trusted platform module (TPM) for protected storage of credentials, keys, and boot code.

Description

HPE Aruba Networking AP-518 (EG) Dual Radio 4x4/2x2 Wi-Fi 6 6xRPSMA Connectors Hardened AP. 2.4 GHz, 5 GHz, Ethernet LAN data rates: 1000,2500,5000 Mbit/s

Specifications

Performance
Ethernet LAN data rates	1000,2500,5000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80/160 (5 GHz), peak data rate 2.69 Gbps (maximum data rate 5.38 Gbps)
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Certification	CB Scheme Safety, cTUVus UL2043 plenum rating Wi‐Fi Alliance certified 802.11a/b/g/n/ Wi‐Fi CERTIFIED 6 (802.11ax) Wi-Fi CERTIFIED ac (with Wave 2 features) Wi-Fi CERTIFIED Location
MIMO	Yes
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.0.0 HPE Aruba Networking Wireless Operating System 10
Features
Ethernet LAN data rates	1000,2500,5000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80/160 (5 GHz), peak data rate 2.69 Gbps (maximum data rate 5.38 Gbps)
Networking standards	IEEE 802.11ax, IEEE 802.11mc
MIMO	Yes
MACsec support	No
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.0.0 HPE Aruba Networking Wireless Operating System 10
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Design
Certification	CB Scheme Safety, cTUVus UL2043 plenum rating Wi‐Fi Alliance certified 802.11a/b/g/n/ Wi‐Fi CERTIFIED 6 (802.11ax) Wi-Fi CERTIFIED ac (with Wave 2 features) Wi-Fi CERTIFIED Location
Recommended usage	Outdoor
Antenna
Antenna connector type	RP-SMA
Technical details
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
Certification	CB Scheme Safety, cTUVus UL2043 plenum rating Wi‐Fi Alliance certified 802.11a/b/g/n/ Wi‐Fi CERTIFIED 6 (802.11ax) Wi-Fi CERTIFIED ac (with Wave 2 features) Wi-Fi CERTIFIED Location
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Weight & dimensions
Width	8.66" (220 mm)
Depth	8.66" (220 mm)
Height	2.95" (75 mm)
Weight	3.31 lbs (1.5 kg)
Other features
I/O ports	E0: HPE Smart Rate port (RJ-45) E1: 100/1000BASE-T (RJ-45) USB-C console interface
Weight (imperial)	3.3 lbs
System requirements
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.0.0 HPE Aruba Networking Wireless Operating System 10
