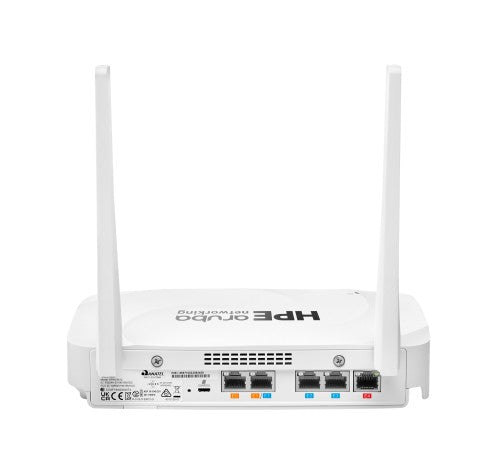

HPE Aruba Networking AP-605R (ID) Dual Radio Tri Band 2x2 802.11ax Wi-Fi 6E Remote Access Point

HPE Aruba Networking AP-605R (ID) Dual Radio Tri Band 2x2 802.11ax Wi-Fi 6E Remote Access Point, 2.4 GHz, 5 GHz, 6 GHz, 1000,2500,5000 Mbit/s

Reasons To Buy

Wi-Fi 6E Performance for Remote Work and Small Branches

HPE Aruba Networking 600R Series Remote Access Points offer 6 GHz coverage with up to 1200 MHz more capacity. Two 2x2 MIMO radios deliver a maximum combined data rate of up to 3.6 Gbps when configured for concurrent 5 GHz and 6 GHz operation.
Wi-Fi 6E extends support for Wi-Fi 6 features such as OFDMA, bidirectional multi-user MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.
For primary or backup cellular, optional CAT 12 module includes antennas and a high-speed interface for LTE connectivity.
You get convenient wired connectivity with a 2.5 Gbps uplink/downlink Ethernet port, a dedicated 1 Gbps uplink port, and three dedicated downlink ports.
It provides Internet of Things (IoT) connectivity with integrated Bluetooth 5 and 802.15.4 radio for Zigbee support and USB‐port extension for connection to a range of devices.

Remote Deployment and Management Made Simple

HPE Aruba Networking 600R Series Remote Access Points are deployed and managed using cloud-native HPE Aruba Networking Central to extend the WAN to home offices, small offices, and temporary locations with built-in SD-WAN and cloud security.
Remote work microbranch capabilities include SD-WAN route/tunnel orchestration, policy-based routing, multiple active tunnels, WAN health visibility, and cloud security orchestration.
They include GPS receiver and fine time measurements to accurately auto-locate themselves.
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise.
No mounts are needed with bundles that combine a desk stand, power adapter, and power cord to mitigate excess packaging.

Boost Security

The HPE Aruba Networking 600R Series Remote Access Points offer enhanced security with dynamic segmentation to remove the time consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
The AP offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls (PEFs).
It simplifies policy enforcement by using the PEF to encapsulate traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the access points include an installed trusted platform module (TPM) for protected storage of credentials, keys, and boot code.

Description

HPE Aruba Networking AP-605R (ID) Dual Radio Tri Band 2x2 802.11ax Wi-Fi 6E Remote Access Point. 2.4 GHz, 5 GHz, 6 GHz, Ethernet LAN data rates: 1000,2500,5000 Mbit/s

Specifications

Performance
Ethernet LAN data rates	1000,2500,5000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.6 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Certification	Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3- Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PSE device, class 3) IEC 61373, JIS E 4031
MIMO	Yes
Compatible operating systems	HPE Aruba Networking Wireless Operating System OS-10
Features
6 GHz	Yes
Ethernet LAN data rates	1000,2500,5000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.6 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
MIMO	Yes
MACsec support	No
Compatible operating systems	HPE Aruba Networking Wireless Operating System OS-10
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Design
Certification	Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3- Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PSE device, class 3) IEC 61373, JIS E 4031
Recommended usage	Indoor
Antenna
Antenna direction type	Omni-directional
Technical details
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Certificates
Certification	Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3- Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PSE device, class 3) IEC 61373, JIS E 4031
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Other features
I/O ports	Uplink (E0): Ethernet wired network port (RJ-45) Up/downlink (E1): Ethernet wired network port (RJ-45) Downlink (E2-E4): Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Cellular radio module interface (accessible after removing the back cover) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot
System requirements
Compatible operating systems	HPE Aruba Networking Wireless Operating System OS-10
