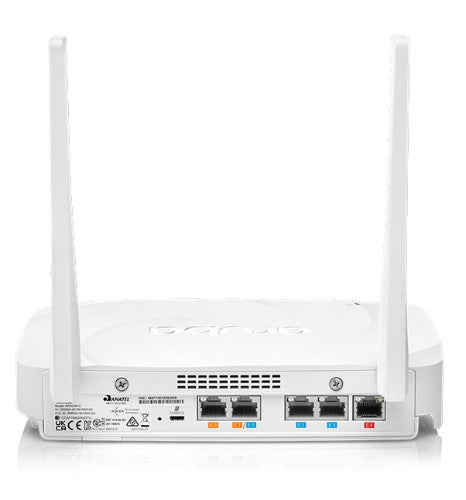

HPE Aruba Networking AP-605R (JP) TAA 3600 Mbit/s White Power over Ethernet (PoE)

HPE Aruba Networking AP-605R (JP) TAA, 2.4 GHz, 5 GHz, 6 GHz, 3600 Mbit/s, WPA3

Description

HPE Aruba Networking AP-605R (JP) TAA. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 3600 Mbit/s. Security algorithms: WPA3. Power over Ethernet (PoE). Product color: White. Power consumption (max): 40 W

Specifications

Performance
Maximum data transfer rate	3600 Mbit/s
Spread spectrum method	DSSS, OFDM, OFDMA
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.4, IEEE 802.3af, IEEE 802.3az
MIMO type	Single User MIMO
MIMO	Yes
Features
6 GHz	Yes
Maximum data transfer rate	3600 Mbit/s
Spread spectrum method	DSSS, OFDM, OFDMA
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.4, IEEE 802.3af, IEEE 802.3az
Bluetooth	Yes
Bluetooth version	5.0
Maximal-Ratio Combining (MRC)	Yes
Dynamic Frequency Selection (DFS)	Yes
Cyclic Shift Diversity (CSD)	Yes
Cyclic Delay Diversity (CDD)	Yes
MIMO type	Single User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	287 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Maximum data transfer rate (6 GHz)	2400 Mbit/s
Bluetooth Low Energy (BLE)	Yes
Trusted Platform Module (TPM)	Yes
Security
Security algorithms	WPA3
Ports & interfaces
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
Power
Power consumption (typical)	5 W
Power consumption (max)	40 W
Power over Ethernet (PoE)	Yes
DC voltage range	48 V
Design
Placement	Table
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	External
Antennas quantity	2
Antenna gain level (max)	5.5 dBi
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Technical details
Compliance certificates	Federal Communications Commission (FCC)
Certificates
Compliance certificates	Federal Communications Commission (FCC)
Software
Maximal-Ratio Combining (MRC)	Yes
Dynamic Frequency Selection (DFS)	Yes
Cyclic Shift Diversity (CSD)	Yes
Cyclic Delay Diversity (CDD)	Yes
Weight & dimensions
Width	8.86" (225 mm)
Depth	5.91" (150 mm)
Height	1.57" (40 mm)
Weight	31.7 oz (900 g)
Package width	14.7" (373 mm)
Package depth	12.2" (309 mm)
Package height	4.21" (107 mm)
Package weight	4.28 lbs (1.94 kg)
Packaging data
Package width	14.7" (373 mm)
Package depth	12.2" (309 mm)
Package height	4.21" (107 mm)
Package weight	4.28 lbs (1.94 kg)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Storage relative humidity (H-H)	10 - 100%
