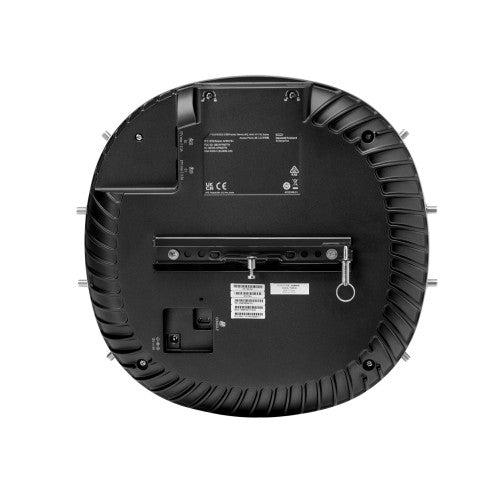

HPE Aruba Networking AP-754 (RW) Tri Radio 4x4 Wi-Fi 7 External Antennas TAA Campus Access Point

HPE Aruba Networking AP-754 (RW) Tri Radio 4x4 Wi-Fi 7 External Antennas TAA Campus Access Point, 2.4 GHz, 5 GHz, 6 GHz, 10000 Mbit/s

Key Features

• Wi‑Fi 7 (802.11be) brings multi‑link operation (MLO) for channel aggregation, 4K QAM for higher throughput and lower latency, and unlocks the 6 GHz band to more than double the available capacity
• Three 4x4 MIMO radios provide tri‑band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver 18.7 Gbps maximum tri‑band aggregate data rate
• Capable of up to 28.8 Gbps maximum aggregate data rate using optional dual 5 GHz and 6 GHz radio modes
• Up to three 320 MHz channels in 6 GHz support low‑latency, bandwidth‑hungry applications like high‑definition video and augmented reality/virtual reality applications
• Patented Ultra Tri‑Band (UTB) filtering enables 5 GHz and 6 GHz to operate without restrictions or interference
• High availability with dual HPE Smart Rate ports for redundant Ethernet and power. Configurable to 1, 2.5, 5, or 10 Gbps (or 100 Mbps)
• IoT‑ready platform with two integrated Bluetooth 6 and 802.15.4/ Zigbee radios and two USB‑port extensions
• Built in GNSS receiver, barometric pressure sensor, and intelligent software enable APs to self‑locate and act as reference points for accurate indoor location measurements
• MACsec support extends wired Ethernet protection to the AP
• Offered as optional eco‑friendly 5‑packs
• AI‑powered dynamic power save mode helps reduce energy use

Reasons To Buy

Flagship Wi-Fi 7 Performance

Based on the 802.11be standard, the HPE Aruba Networking 750 Series Campus Access Points are designed to take advantage of the 6 GHz band through three dedicated radios, which translates into far greater speeds, wider channels for multigigabit traffic, and less interference.
With three 4x4 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), the series delivers up to 18.7 Gbps maximum tri-band aggregate data rate and is capable of up to 28.8 Gbps maximum aggregate data rate using optional dual 5 GHz and 6 GHz radio modes.
Featuring high availability with two 10GbE ports for hitless failover for both data and power, allowing these dual ports to provide business continuity for mission-critical applications with flexibility to support speeds of 1, 2.5, 5, or 10 Gbps (or 100 Mbps).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the access point where it receives the good radio signal.
Patented UTB filtering enables enterprises to take advantage of the high end of 5 GHz with the lower end of 6 GHz without creating coverage gaps or islands.

Simplified Access with Enhanced Security

The HPE Aruba Networking 750 Series Campus Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
MACsec-capable 10GbE port extends wired Ethernet protection to the access point.
It offers stronger encryption and authentication with WPA3, protected credential/key storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls (PFEs).
The APs simplify policy enforcement by using the PEF to encapsulate all traffic from the access point to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the APs include an installed trusted platform module (TPM) for protected storage of credentials, keys, and boot code.

AP as an IoT Platform

The HPE Aruba Networking 750 Series Campus Access Points can serve as flexible IoT platforms that bolsters network security and provide coverage for a broad range of IoT devices without the need for network overlays.
It provides two built-in Bluetooth 5.4 and 802.15.4 radios for Zigbee support to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors. Two USB port extensions provide connectivity to a range of IoT devices.
Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi and BLE/Zigbee radios to operate at greater capacity without the impact of interference.
HPE Aruba Networking Central IoT operations unifies visibility of IT and OT infrastructure within the network health dashboard by extending network monitoring and insights to BLE, Zigbee, and other non-IP IoT devices to help non-Wi-Fi device onboarding and data collection.
HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

Energy Saving and Self-locating

The HPE Aruba Networking 750 Series Campus Access Points help organizations reduce energy consumption and deliver precision indoor location services with the APs that serve as reference points for client devices and other technologies using fine time measurement.
It offers precision locationing with the support of FTM 802.11az for sub-1 meter accuracy and built-in GNSS receivers for high-accuracy indoor location measurements.
It has built-in barometric sensor for altitude locationing within multi-story buildings that provides floor-level mappings.
AI-powered dynamic power save mode enables the HPE Aruba Networking 750 Series Campus Access Points to automatically wake up at a schedule when connectivity demand arises, reducing power demands and lowering the energy footprint to align with the organization's sustainability initiatives.
Target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention. Intelligent power monitoring (IPM) provides energy consumption insights as APs continuously monitor and report hardware energy usage.

Description

HPE Aruba Networking AP-754 (RW) Tri Radio 4x4 Wi-Fi 7 External Antennas TAA Campus Access Point. 2.4 GHz, 5 GHz, 6 GHz, Ethernet LAN data rates: 10000 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 51 W

Specifications

Performance
Ethernet LAN data rates	10000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), and maximum peak data rate 28.8 Gbps
Wi-Fi Multimedia (WMM)/(WME)	Yes
Auto MDI/MDI-X	Yes
Reset button	Yes
Networking standards	IEEE 802.11be, IEEE 802.11mc
Certification	UL2043 plenum rating Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6)
MIMO type	Multi User MIMO
MIMO	Yes
Compatible operating systems	HPE Aruba Networking Wireless Operating System 10.7.0.0 or later
Features
6 GHz	Yes
Ethernet LAN data rates	10000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), and maximum peak data rate 28.8 Gbps
Wi-Fi Multimedia (WMM)/(WME)	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11be, IEEE 802.11mc
Bluetooth	Yes
Bluetooth version	5.4
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	1400 Mbit/s
Maximum data transfer rate (5 GHz)	5800 Mbit/s
Maximum data transfer rate (6 GHz)	11500 Mbit/s
Bluetooth Low Energy (BLE)	Yes
Trusted Platform Module (TPM)	Yes
BeamForming	Yes
MACsec support	Yes
Compatible operating systems	HPE Aruba Networking Wireless Operating System 10.7.0.0 or later
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Ports & interfaces
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes
Power
Power consumption (max)	51 W
Power over Ethernet (PoE)	Yes
DC voltage range	48 V
Design
Reset button	Yes
Placement	Wall
Product colour	White
Certification	UL2043 plenum rating Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6)
Recommended usage	Indoor
Antenna
Antenna type	External
Number of connectors	8
Antenna connector type	RP-SMA
Antenna direction type	Omni-directional
Technical details
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Certificates
Certification	UL2043 plenum rating Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6)
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Weight & dimensions
Width	10.2" (260 mm)
Depth	10.2" (260 mm)
Height	2.24" (57 mm)
Weight	3.37 lbs (1.53 kg)
Package width	12.6" (320 mm)
Package depth	12.6" (320 mm)
Package height	3.27" (83 mm)
Package weight	4.7 lbs (2.13 kg)
Packaging data
Package width	12.6" (320 mm)
Package depth	12.6" (320 mm)
Package height	3.27" (83 mm)
Package weight	4.7 lbs (2.13 kg)
Packaging content
Quantity per pack	1 pc(s)
Other features
I/O ports	E0, E1: Two Ethernet wired network ports (RJ‐45) U0, U1: Two USB 2.0 host interfaces (Type A connector) Serial console interface (proprietary, micro‐B USB physical jack) Kensington security slot
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
System requirements
Compatible operating systems	HPE Aruba Networking Wireless Operating System 10.7.0.0 or later
Logistics data
Quantity per pack	1 pc(s)
