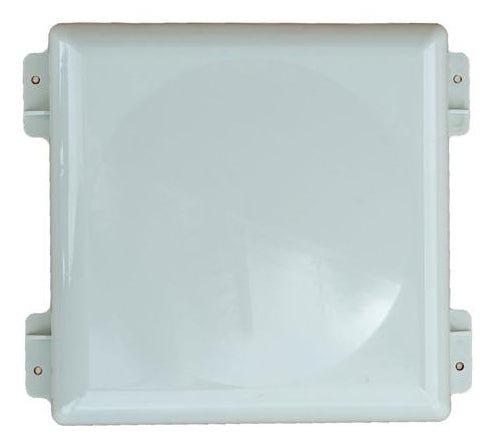

HPE Aruba Networking AP-ANT-348 Cabled RP-SMA Tri-Band 4x4 High Gain Directional Panel Antenna

HPE Aruba Networking AP-ANT-348 Cabled RP-SMA Tri-Band 4x4 High Gain Directional Panel Antenna, 8 dBi, 2.4/5/6 GHz, 7.5 dBi, 8 dBi, 50 Ω, SMA antenna

Description

HPE Aruba Networking AP-ANT-348 Cabled RP-SMA Tri-Band 4x4 High Gain Directional Panel Antenna. Antenna gain level (max): 8 dBi, Frequency band: 2.4/5/6 GHz, Antenna gain (2.4 GHz): 7.5 dBi. Antenna type: SMA antenna, Antenna connector type: RP-SMA, Voltage Standing Wave Ratio (VSWR): < 2.0:1. Width: 1.61" (41 mm), Depth: 6.61" (168 mm), Height: 8.5" (216 mm). Weight (imperial): 1.2 lbs

Specifications

Performance
Antenna gain level (max)	8 dBi
Frequency band	2.4/5/6 GHz
Impedance	50 Ω
Antenna gain (5 GHz)	8 dBi
Antenna gain (2.4 GHz)	7.5 dBi
Features
Survival wind speed	220 km/h
Housing material	Polycarbonate (PC)
Isolation	20 dB
International Protection (IP) code	IP67
Antenna type	SMA antenna
Voltage Standing Wave Ratio (VSWR)	< 2.0:1
Antenna connector type	RP-SMA
Product colour	Gray, White
Antenna gain level (max)	8 dBi
Frequency band	2.4/5/6 GHz
Impedance	50 Ω
Antenna gain (5 GHz)	8 dBi
Antenna gain (2.4 GHz)	7.5 dBi
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	19.2 oz (544.3 g)
Width	1.61" (41 mm)
Depth	6.61" (168 mm)
Height	8.5" (216 mm)
Other features
Weight (imperial)	1.2 lbs
