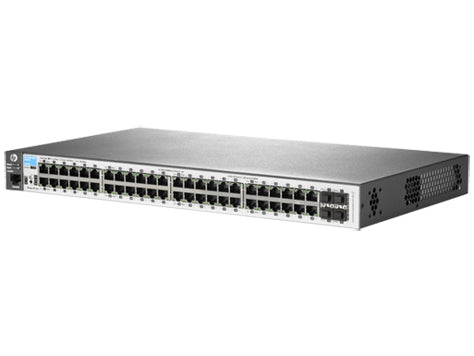

HPE Aruba Networking Aruba 2530-48G Managed L2 Gigabit Ethernet (10/100/1000) 1U Gray

HPE Aruba Networking Aruba 2530-48G, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U

Description

HPE Aruba Networking Aruba 2530-48G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Installed SFP modules quantity: 4. Full duplex. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L2
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	4
Installed SFP+ modules quantity	0
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
MAC address table	16000 entries
Switching capacity	104 Gbit/s
Throughput	77.3 Mpps
Latency (10-100 Mbps)	7.4 µs
Latency (1 Gbps)	2.3 µs
Jumbo frames support	Yes
Packet buffer memory	3 MB
Security
SSH/SSL support	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Gray
Form factor	1U
Performance
Virtual stacking (units)	16
Processor frequency	800 MHz
Memory type	DDR3-SDRAM
Internal memory	256 MB
Flash memory	128 MB
Built-in processor	Yes
Stackable	Yes
Packet buffer memory	3 MB
Harmonized System (HS) code	85176990
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	59.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 90%
Heat dissipation	203 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	17.4" (443 mm)
Depth	10" (254 mm)
Height	1.75" (44.5 mm)
Weight	6.79 lbs (3.08 kg)
Logistics data
Harmonized System (HS) code	85176990
