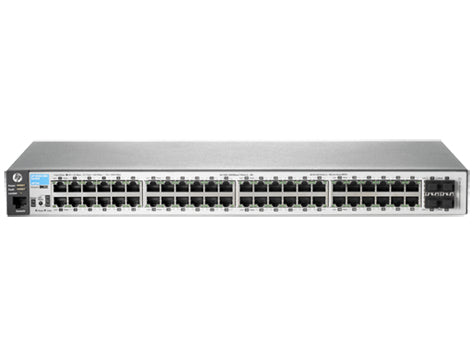

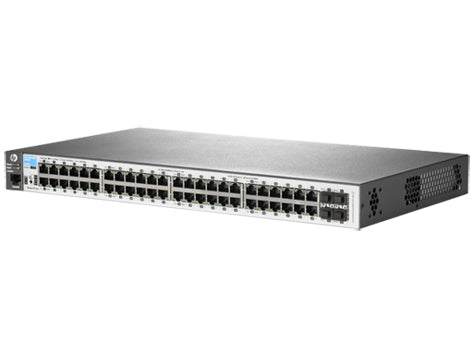

HPE Aruba Networking Aruba 2530-48G Managed L2 Gigabit Ethernet (10/100/1000) 1U Gray

HPE Aruba Networking Aruba 2530-48G, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U

Description

HPE Aruba Networking Aruba 2530-48G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L2
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
MAC address table	16000 entries
Switching capacity	104 Gbit/s
Throughput	77.3 Mpps
Latency (10-100 Mbps)	7.4 µs
Latency (1 Gbps)	2.3 µs
Jumbo frames support	Yes
Packet buffer memory	3 MB
Security
SSH/SSL support	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Gray
Form factor	1U
Safety	UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1
Electromagnetic compatibility	FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A
Performance
Virtual stacking (units)	16
Processor frequency	800 MHz
Memory type	DDR3-SDRAM
Internal memory	256 MB
Flash memory	128 MB
Built-in processor	Yes
Stackable	Yes
Packet buffer memory	3 MB
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	100 - 240 V
Power consumption (typical)	59.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Management platform	IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB
Latency	100 Mb Latency: < 7.4 µs; 1000 Mb Latency: < 2.3 µs
Mounting	Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
Memory and processor	ARM9E @ 800 MHz; 128 MB flash; packet buffer size: 3 MB dynamically allocated; 256 MB DDR3 DIMM
Operating altitude (imperial)	up to 10000 ft
I/O ports	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 4 fixed Gigabit Ethernet SFP ports; 1 dual-personality (RJ-45 or USB micro-B) serial console port; Included
Electromagnetic immunity	EN 55024, CISPR 24; EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 90%
Heat dissipation	203 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	17.4" (443 mm)
Depth	10" (254 mm)
Height	1.75" (44.5 mm)
Weight	6.79 lbs (3.08 kg)
Logistics data
Harmonized System (HS) code	85176990
