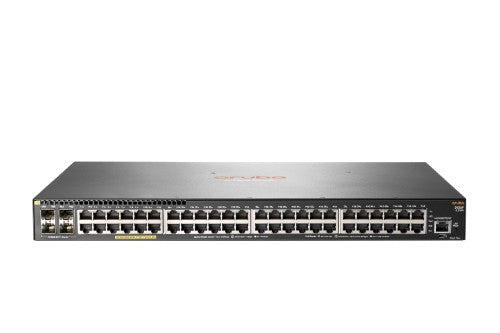

HPE Aruba Networking Aruba 2930F Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray

Aruba 2930F 48G PoE+ 4SFP+ Switch

Description

The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with
an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and PoE power, and
are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager,
Aruba AirWave and cloud-based Aruba Central.
A powerful Aruba ProVision ASIC delivers performance, robust feature support and value with programmability for the latest
applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE
or 10GbE uplinks, PoE+, Access OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing
required.
The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero
Touch Provisioning. The robust basic Layer 3 feature set includes a limited lifetime warranty

Specifications

Management features
Switch layer	L3
Switch type	Managed
Traffic classification	Yes
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
MAC address table	32768 entries
Switching capacity	176 Gbit/s
Throughput	112 Mpps
Latency (1 Gbps)	3.8 µs
Latency (10 Gbps)	1.6 µs
Jumbo frames support	Yes
Packet buffer memory	12.38 MB
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Gray
Form factor	1U
Performance
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	1024 MB
Built-in processor	Yes
Stackable	Yes
Packet buffer memory	12.38 MB
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	48.6 W
Power consumption (max)	459 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	370 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	17.4" (442.5 mm)
Depth	12" (304.2 mm)
Height	1.73" (43.9 mm)
Weight	9.83 lbs (4.46 kg)
Logistics data
Harmonized System (HS) code	85176990
