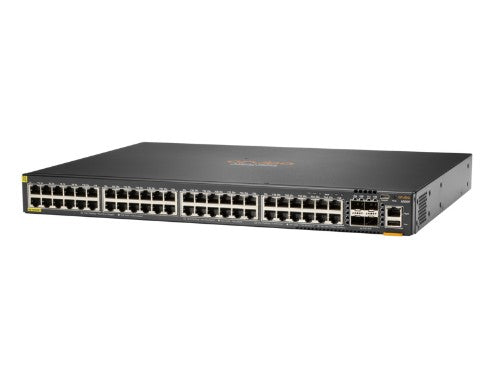

HPE Aruba Networking Aruba 6300F 48-port 1GbE Class 4 PoE & 4-port SFP56 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray

HPE Aruba Networking Aruba 6300F 48-port 1GbE Class 4 PoE & 4-port SFP56, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Description

HPE Aruba Networking Aruba 6300F 48-port 1GbE Class 4 PoE & 4-port SFP56. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Installed SFP modules quantity: 4. MAC address table: 29490 entries, Switching capacity: 496 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1v, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Management features
Multicast support	Yes
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1v, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Number of VLANs	4094
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Virtual LAN features
Number of VLANs	4094
VLAN support	Yes
Data transmission
Number of VLANs	4094
MAC address table	29490 entries
Switching capacity	496 Gbit/s
Throughput	369 Mpps
Latency (1 Gbps)	2.28 µs
Latency (10 Gbps)	1.46 µs
Jumbo frames support	Yes
Packet buffer memory	8 MB
Performance
Stackable	Yes
Packet buffer memory	8 MB
Physical stacking (units)	10
Processor frequency	1800 MHz
Memory type	DDR4-SDRAM
Internal memory	8192 MB
Built-in processor	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	4
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS
DHCP features	DHCP server
Multicast features
Multicast support	Yes
Protocols
Routing protocols	BGP, BGP4, IP, OSPF
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Gray
Form factor	1U
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	86 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	740 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 90%
Weight & dimensions
Width	17.4" (442 mm)
Depth	12.9" (327 mm)
Height	1.73" (43.9 mm)
Weight	11.2 lbs (5.1 kg)
