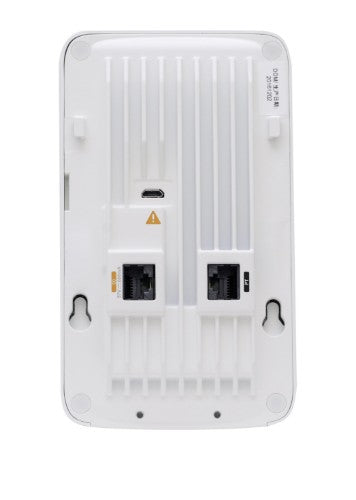

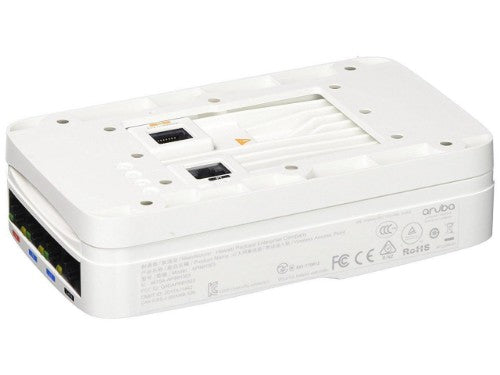

HPE Aruba Networking Aruba AP-303H (RW) 867 Mbit/s White Power over Ethernet (PoE)

Aruba AP-303H (RW) Dual-radio 802.11ac 2x2 Unified Hospitality AP w/Internal Antennas

Description

This access point combines wireless and wired access in a single compact device. It’s ideal for hotels, medical clinics, classrooms, branch offices and remote workstations which often require flexible and easy deployment options.

Three local Gigabit Ethernet ports are available to securely attach wired devices to your network. One of these ports is also capable of supplying PoE power to the attached device.

Integrated Bluetooth Aruba Beacon simplifies the remote management of a large-scale network of battery-powered BLE Aruba Beacons while also providing advanced location and indoor wayfinding, and proximity-based push notification capabilities. Also for improved network simplicity and security, Dynamic Segmentation automatically enforces real-time device-level access policies on Aruba wired and wireless networks.

Specifications

Performance
Maximum data transfer rate	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	DSSS, OFDM
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
MIMO	Yes
Features
Maximum data transfer rate	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	DSSS, OFDM
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Security
Security algorithms	Not supported
Ports & interfaces
USB connector type	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	3
Power
Power consumption (max)	9.7 W
Power over Ethernet (PoE)	Yes
Design
Placement	Wall
Product colour	White
Antenna
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	6.2 dBi
Antenna direction type	Directional
Antenna features	Integrated antenna
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	3.39" (86 mm)
Depth	1.57" (40 mm)
Height	5.91" (150 mm)
Weight	12.3 oz (350 g)
Package width	11.5" (293 mm)
Package depth	5.39" (137 mm)
Package height	3.66" (93 mm)
Package weight	27.9 oz (790 g)
Packaging data
Package width	11.5" (293 mm)
Package depth	5.39" (137 mm)
Package height	3.66" (93 mm)
Package weight	27.9 oz (790 g)
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Logistics data
Harmonized System (HS) code	85176990
