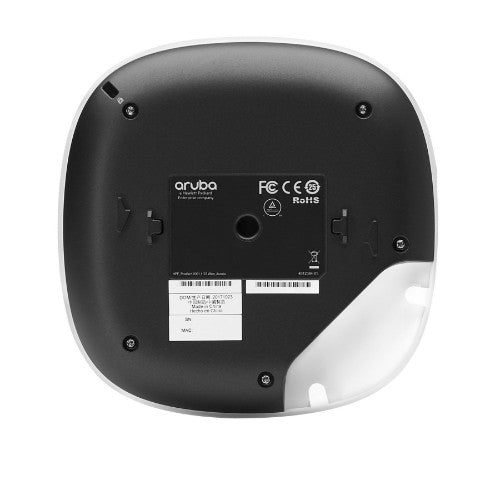

HPE Aruba Networking Aruba AP-303P (RW) 1167 Mbit/s White Power over Ethernet (PoE)

Aruba AP-303P (RW) Dual 2x2:2 MU-MIMO Radio Internal Antennas Unified Campus AP Dual Ethernet, Remanufactured

Description

The affordable 303 Series 802.11ac Wave 2 campus access points deliver high performance to medium density enterprise environments such as schools, retail branches, warehouses, hotels and enterprise offices, where the environment is cost sensitive. As a Unified AP, they can be operated with (ArubaOS mode) or without a controller (InstantOS mode).

The AP-303P includes a second Ethernet port with PoE out to daisy-chain the wired network to connect and power any network device such as IP camera, IoT gateway, or even a second access point. This feature results in reducing the cost and simplifying the installation of multiple devices by sharing switch ports and cabling. The AP-303P has integrated Zigbee radio for IoT connectivity.
 

With an integrated Bluetooth radio, the 303 APs can be used as an Aruba beacon for advanced location and indoor wayfinding, asset tracking, and proximity-based push notification services. Also for improved network simplicity and security, Dynamic Segmentation automatically enforces real-time device-level access policies on Aruba wired and wireless networks.

Specifications

Performance
Maximum data transfer rate	1167 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	DSSS, OFDM
2.4 GHz	Yes
5 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
MIMO type	Multi User MIMO
MIMO	Yes
Features
Maximum data transfer rate	1167 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	DSSS, OFDM
2.4 GHz	Yes
5 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Security
Security algorithms	Not supported
Ports & interfaces
USB connector type	Micro-USB
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Power
Power consumption (max)	11.5 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	5.9 dBi
Antenna direction type	Omni-directional
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	5.91" (150 mm)
Depth	5.91" (150 mm)
Height	1.38" (35 mm)
Weight	9.17 oz (260 g)
Package width	7.48" (190 mm)
Package depth	7.09" (180 mm)
Package height	2.36" (60 mm)
Package weight	14.5 oz (410 g)
Packaging data
Package width	7.48" (190 mm)
Package depth	7.09" (180 mm)
Package height	2.36" (60 mm)
Package weight	14.5 oz (410 g)
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Logistics data
Harmonized System (HS) code	85176990
