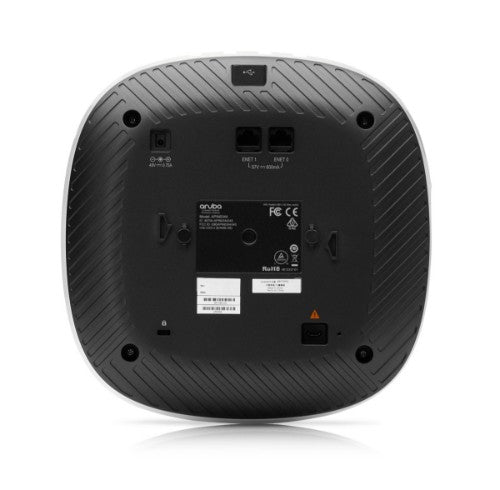

HPE Aruba Networking Aruba AP-344 (RW) 4300 Mbit/s White Power over Ethernet (PoE)

Aruba AP-344 (RW) Dual 4x4:4 MU-MIMO Radio Antenna Connectors Smart Rate Unified Campus AP, Remanufactured

Description

The Aruba 340 series access points provide the fastest 802.11ac gigabit data speeds and superb user experience for mobile devices and applications in a digital workplace.

Designed with an integrated, 802.3bz compliant, HPE SmartRate multi-gig Ethernet port to eliminate wired bottlenecks, these APs offer unmatched wireless performance and capacity. Also for improved network simplicity and security, Dynamic Segmentation automatically enforces real-time device-level access policies on Aruba wired and wireless networks.

The unique and flexible dual-5GHz architecture of the 340 series offers a way to boost 5GHz capacity where needed.

Specifications

Performance
Maximum data transfer rate	4300 Mbit/s
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Spread spectrum method	DSSS, OFDM
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
MIMO type	Multi User MIMO
MIMO	Yes
Features
Maximum data transfer rate	4300 Mbit/s
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Spread spectrum method	DSSS, OFDM
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	800 Mbit/s
Maximum data transfer rate (5 GHz)	2166 Mbit/s
Security
Security algorithms	Not supported
Ports & interfaces
USB connector type	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Power
Power consumption (max)	25.1 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	External
Number of connectors	4
Antenna connector type	RP-SMA
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	8.86" (225 mm)
Depth	8.82" (224 mm)
Height	2.05" (52 mm)
Weight	2.31 lbs (1.05 kg)
Package width	13.3" (339 mm)
Package depth	11.4" (290 mm)
Package height	3.46" (88 mm)
Package weight	3.64 lbs (1.65 kg)
Packaging data
Package width	13.3" (339 mm)
Package depth	11.4" (290 mm)
Package height	3.46" (88 mm)
Package weight	3.64 lbs (1.65 kg)
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Logistics data
Harmonized System (HS) code	85176990
