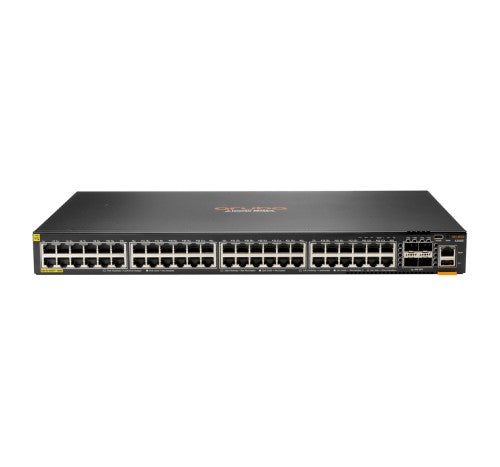

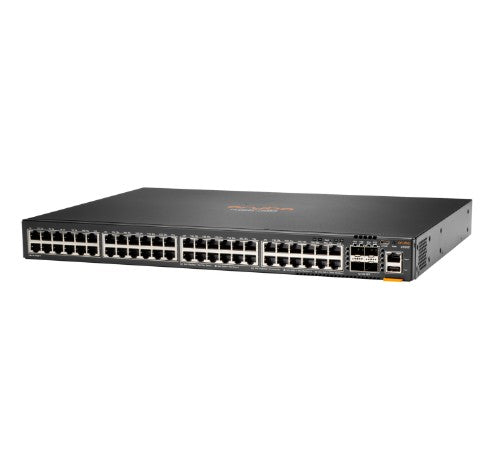

HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP 740W TAA Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP 740W TAA, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Description

HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP 740W TAA. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/USB Type-C. MAC address table: 32768 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Console port	RJ-45/USB Type-C
Network
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
Optical fiber
Transmission distance (max)	10 km
Data transmission
MAC address table	32768 entries
Switching capacity	176 Gbit/s
Throughput	130.9 Mpps
Latency (1 Gbps)	2.28 µs
Latency (10 Gbps)	1.46 µs
Jumbo frames support	Yes
Packet buffer memory	8 MB
Security
Authentication	MAC-based authentication, Web-based authentication
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
Multicast features
Multicast support	Yes
Protocols
Routing protocols	OSPF, OSPFv2, OSPFv3, RIP-2, RIPng
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Design
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Performance
Physical stacking (units)	8
Processor frequency	1800 MHz
Memory type	SDRAM / Flash
Internal memory	8192 MB
Flash memory	16384 MB
Built-in processor	Yes
Processor model	ARM Cortex-A72
Stackable	Yes
Packet buffer memory	8 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	76 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	740 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	17.4" (442 mm)
Depth	12.9" (327 mm)
Height	1.73" (43.9 mm)
Weight	11.3 lbs (5.13 kg)
IPv4 & IPv6 features
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
