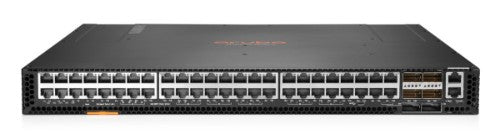

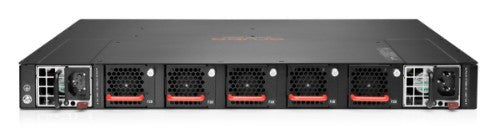

HPE Aruba Networking CX 8320 48p 1G/10GBASE-T 6p 40G QSFP+ X472 5 Fans 2 Power Supply Switch Bundle

HPE Aruba Networking CX 8320 48p 1G/10GBASE-T 6p 40G QSFP+ X472 5 Fans 2 Power Supply Switch Bundle, Managed, L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U

Reasons To Buy

Game-changing business agility

The HPE Aruba Networking CX 8320 Switch Series is a campus core and aggregation switch solution with an innovative and powerful approach to dealing with the new applications, security and scalability demands of the mobile, cloud and Internet of Things (IoT) era.
Fully programmable with HPE Aruba Networking CX Switch Operating System (AOS-CX), it brings automation and visibility and helps troubleshoot through simple scripting.
HPE Aruba Networking CX Network Analytics Engine (NAE) provides the ability to monitor and troubleshoot the network, system, application and security related issues easily, through simple Python agents and REST APIs.
The switch series offers high-speed fully distributed architecture with 2.5 Tbps switching capacity for uninterrupted networking.
It provides robust security and quality of service (QoS) with advanced Layer 2 and Layer 3 features including support for BGP, OSPF, and VRF.

Modern software system simplifies and automates

The CX 8320 series is based on HPE Aruba Networking CX Switch Operating System (AOS-CX), a modern software system for the core that automates and simplifies many critical and complex network tasks.
The built-in time series database enables customers and developers to develop software modules for historical troubleshooting, as well as analysis of historical trends, to predict and avoid future problems due to scale, security and performance bottlenecks.
It includes stability, independent monitoring and restart of individual software modules, enhanced software process serviceability functions and it allows individual software modules to be upgraded for higher availability.
HPE Aruba Networking Switch Multi‑Edit Software support for automated configuration and verification.
HPE Aruba Networking NetEdit for switch configuration automation and orchestration.

High performance and high availability

The HPE Aruba Networking CX 8320 Switch Series includes a high speed, fully distributed architecture and provides up to 2.5 Tbps switching capacity to meet the demands and bandwidth-intensive applications today and in the future.
High availability with HPE Aruba Networking Virtual Switching Extension (VSX) is designed to deliver continuous availability, virtualization and simplicity requirements unique to the core of the network. Redundant and hot-swappable power supplies and fans provide additional resiliency.
This compact 1U switch delivers line rate 10GbE and 40GbE connectivity with very low latency for support of full internet routes. Optimize for your deployment with a model that provides 32 ports of 40GbE, and models with 48 ports of 10GbE (SFP/SFP+ or 10GBASE-T) and 6 ports of 40GbE.

Description

HPE Aruba Networking CX 8320 48p 1G/10GBASE-T 6p 40G QSFP+ X472 5 Fans 2 Power Supply Switch Bundle. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 98304 entries, Switching capacity: 2500 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
QSFP+ module slots quantity	6
Console port	RJ-45
USB 2.0 ports quantity	1
Copper ethernet cabling technology	10GBASE-T
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10GBASE-T
VLAN support	Yes
Port mirroring	Yes
IP routing	Yes
10G support	Yes
MLD entries	4094
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Data transmission
MAC address table	98304 entries
Switching capacity	2500 Gbit/s
Throughput	1905 Mpps
Maximum data transfer rate	40 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	16 MB
Security
Access Control List (ACL)	Yes
Authentication type	RADIUS
DHCP features	DHCP server
Multicast features
Multicast support	Yes
MLD entries	4094
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Protocols
Routing protocols	BGP, OSPF
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Form factor	1U
Airflow direction	Front-to-back airflow
Number of fans	5 fan(s)
Performance
Processor frequency	2000 MHz
Noise level	61.1 dB
Internal memory	16000 MB
Flash memory	8000 MB
Mean time between failures (MTBF)	275339 h
Built-in processor	Yes
Stackable	Yes
Packet buffer memory	16 MB
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	200 - 240 V
Power consumption (typical)	348 W
Power consumption (max)	348 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power consumption note	348W
Power source	AC
Power supply note	Field‑replaceable, hot‑swappable, and up to 2 power supplies
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Performance management	SNMP RJ-45 for serial console USB Type-A for file management only RJ-45 Ethernet for OOBM
Memory and processor	2 GHz CPU, 16 GB RAM, 64GB SSD, and 8 GB Flash
Fan	Field‑replaceable, hot‑swappable, and up to five fans
Weight (imperial)	20.94 lbs
I/O ports	Supports 48 ports of 10GBASE‑T and 6 ports of 40G for use with QSFP+ transceivers (optional 4 x 10G breakout cables)
Dimensions (W x D x H) (imperial)	1.71 x 18.6 x 17.4"
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	1.73" (43.9 mm)
Depth	18.6" (473 mm)
Height	17.4" (443 mm)
Weight	20.9 lbs (9.5 kg)
Logistics data
Harmonized System (HS) code	85176990
