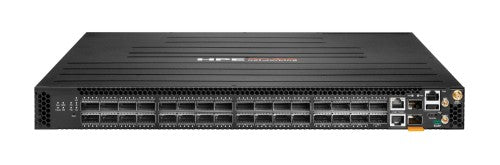

HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU TAA Bundle

HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU TAA Bundle, Managed, L3, Rack mounting, 1U

Description

HPE Aruba Networking CX 8325P 32p QSFP28 40G/100G Front-to-Back 6xFan 2xAC PSU TAA Bundle. Switch type: Managed, Switch layer: L3. Switching capacity: 6400 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
QSFP28 ports quantity	32
Network
Networking standards	IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z
Number of VLANs	4040
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	40000,100000 Mbit/s
Data transmission
Switching capacity	6400 Gbit/s
Throughput	2000 Mpps
Jumbo frames support	Yes
Packet buffer memory	32 MB
Number of VLANs	4040
Security
SSH/SSL support	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP relay, DHCP server
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMP v2c, SNMP v3, RMON
Routing protocols	BGP, BGP4, OSPF, OSPFv2, OSPFv3
Design
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Airflow direction	Front-to-back airflow
Number of fans	6 fan(s)
Performance
Processor frequency	2200 MHz
Memory type	RAM / Flash
Internal memory	16000 MB
Flash memory	8000 MB
Built-in processor	Yes
Stackable	Yes
Packet buffer memory	32 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	618 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Virtual LAN features
Number of VLANs	4040
VLAN support	Yes
Weight & dimensions
Width	17.4" (442 mm)
Depth	17.3" (438.4 mm)
Height	1.69" (43 mm)
Other features
Ethernet LAN data rates	40000,100000 Mbit/s
