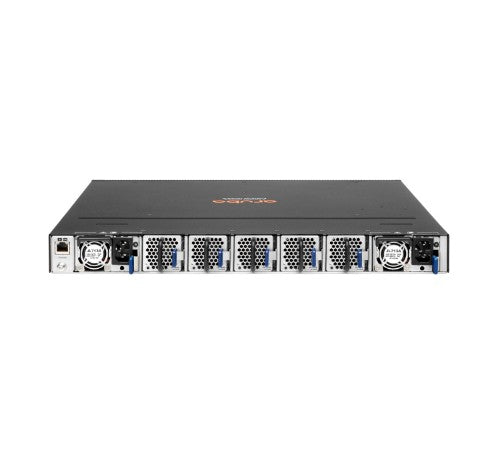

HPE Aruba Networking CX 8360‑48Y6C v2 Managed L3 1U

Aruba 8360-48Y6C v2 48p 25G SFP/+/28 4 Sec 6p 100G QSFP+/28 2 Sec Frnt-to-Bck 5 Fans 2 AC Bdl

Description

The Aruba CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next generation core and aggregation layer of campuses, as well as virtual and cloud data center environments. The first switch in this series is the Aruba CX 8360-48Y6C v2 switch.

Features

Modular Cloud-Native Architecture
- The Aruba CX 8360 v2 Switch Series AOS-CX simplify the complexities of managing data center networks with automation options to match your IT organization’s operating model.
- Proactively detect issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch. Always-on infrastructure designed for resiliency and upgrades with zero downtime.
- REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services.
- Continual state synchronization provides superior fault tolerance and high availability. Always-on infrastructure designed for resiliency and upgrades with zero downtime.

Aruba Network Analytics Engine
- The Aruba Network Analytics Engine (NAE) for advanced telemetry and automation. NAE is an industry-first monitoring and troubleshooting system, providing greatly improved network operations. NAE uniquely provides the ability to monitor and easily troubleshoot network health and congestion issues.
- Customers can use data from The Time Series Database (TSDB) to store configuration and operational state to write software modules to troubleshoot problems. This data may also be used to analyze trends, identify anomalies, and predict future capacity requirements.

High Availability and Resiliency
- All software processes in the Aruba CX 8360 v2 Switch Series run as microservices that communicate via the state database of the switch; there is no direct communication between microservices. Should a software process crash, the impact of that failure will be limited.
- The ability of ArubaOS-CX to maintain synchronous state across dual control planes allows a unique high availability solution called Aruba Virtual Switching Extension (VSX).
- Aruba VSX provides a robust, yet simple solution for high availability with a unique design for control plane synchronization and an architecture that is redundant in both hardware and software by deploying two chassis with an inter-switch link, maintaining its independent control.

Software-Defined Automation
- The Aruba CX 8360 v2 Switch Series is supported by Aruba Fabric Composer, a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure.
- Orchestrate a discrete set of switches as a single networking fabric to simplify operations and troubleshooting. This infrastructure and application-aware solution also automates various configuration and lifecycle events.

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	48
QSFP+ module slots quantity	6
Console port	RJ-45/USB Type-C
Fiber optic connector	QSFP+, QSFP28, SFP, SFP+, SFP28
Network
Networking standards	IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3x, IEEE 802.3z
Number of VLANs	4094
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
10G support	Yes
IGMP snooping	Yes
IGMP entries	7000
Data transmission
MAC address table	212992 entries
Switching capacity	4800 Gbit/s
Throughput	2678 Mpps
Jumbo frames support	Yes
Packet buffer memory	32 MB
Number of VLANs	4094
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
IGMP entries	7000
DHCP features	DHCP server
Multicast features
Multicast support	Yes
Protocols
Routing protocols	BGP4, MPLS, OSPF, OSPFv3, RIP-2, RIPng
Design
Rack mounting	Yes
Form factor	1U
Ventilation system	Front-to-back airflow
Redundant fans support	Yes
Performance
Processor frequency	1800 MHz
Internal memory	16384 MB
Flash memory	32768 MB
Built-in processor	Yes
Packet buffer memory	32 MB
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Power consumption (max)	725 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Heat dissipation	1450 BTU/h
Virtual LAN features
Number of VLANs	4094
VLAN support	Yes
Weight & dimensions
Width	17.4" (442.5 mm)
Depth	22" (558.8 mm)
Height	1.73" (44 mm)
Weight	23.6 lbs (10.7 kg)
Optical fiber
Fiber optic connector	QSFP+, QSFP28, SFP, SFP+, SFP28
Logistics data
Harmonized System (HS) code	85176990
