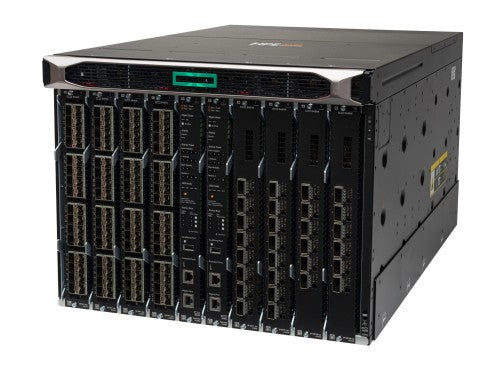

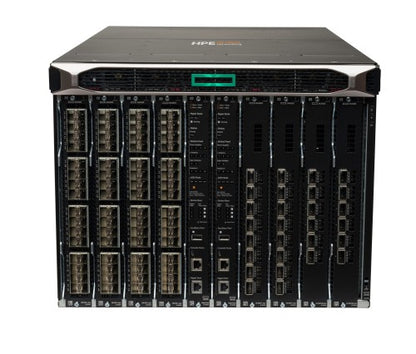

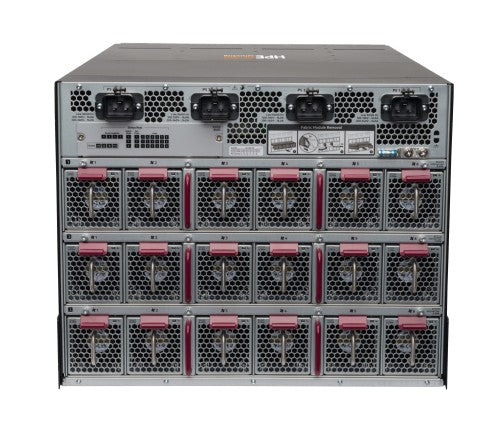

HPE Aruba Networking CX 8400 8-slot Chassis/3xFan Trays/18xFans/Cable Manager/X462 Bundle

HPE Aruba Networking CX 8400 8-slot Chassis/3xFan Trays/18xFans/Cable Manager/X462 Bundle, 19200 Gbit/s, 7142 Mpps, 2200 MHz, 2750 W, 2750W, Intel Xeon D-15xx (Intel Broadwell-DE), 4 cores, 2.2 GHz, 32 GB GDDR5 DRAM (2 x 16 GB), SSD 120...

Reasons To Buy

Game-changing business agility

HPE Aruba Networking CX 8400 Switch Series is a core and aggregation switch solution with an innovative and powerful approach to address the new applications, security and scalability demands of the mobile-cloud and Internet of Things (IoT) era.
Fully programmable with HPE Aruba Networking CX Switch Operating System (AOS-CX), it brings automation and visibility and helps troubleshoot through simple scripting.
HPE Aruba Networking CX Network Analytics Engine (NAE) provides the ability to monitor and troubleshoot the network, system, application and security related issues easily, through simple Python agents and REST APIs.
High-availability, high-speed architecture with 19.2 Tbps switching capacity for uninterrupted networking.
Robust security and quality of service (QoS) with advanced Layer 2 and Layer 3 features including support for BGP, OSPF, VRF and IPv6.

Modern software system simplifies and automates

The CX 8400 series is based on AOS-CX, a modern software system for the core that automates and simplifies many critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events.
The built-in time series database (TSDB) enables customers and developers to develop software modules for historical troubleshooting, as well as analysis of historical trends, to predict and avoid future problems due to scale, security and performance bottlenecks.
It includes stability, independent monitoring and restart of individual software modules, and enhanced software process serviceability functions. And it allows individual software modules to be upgraded for higher availability.
It delivers enhanced fault tolerance and facilitates nearly continuous operation and zero service disruption during planned or unplanned control-plane events.
Advanced AI-powered insights and automated actions with rich telemetry data to optimize network performance and faster response to identified problems along with proactive prediction and prevention so that potential problems impacting CPU, ports, PoE, and more can be mitigated.

High performance and carrier-class high availability

The CX 8400 series includes a high-speed, fully distributed architecture and provides up to 19.2 Tbps switching capacity to meet the demands and bandwidth-intensive applications today and in the future.
High availability with HPE Aruba Networking Virtual Switching Extension (VSX) is designed to deliver continuous availability and virtualization and simplicity requirements unique to the core of the network. Redundant and hot-swappable power supplies and fans provide additional resiliency.
Scalable, compact 8U chassis delivers industry-leading line rate 10/25/40/100GbE port density, very low latency, and scalability ideal for the campus core.

Description

HPE Aruba Networking CX 8400 8-slot Chassis/3xFan Trays/18xFans/Cable Manager/X462 Bundle. Switching capacity: 19200 Gbit/s

Specifications

Data transmission
Switching capacity	19200 Gbit/s
Throughput	7142 Mpps
Design
Stackable	Yes
Performance
Processor frequency	2200 MHz
Built-in processor	Yes
Stackable	Yes
Power
Power consumption (max)	2750 W
Power consumption note	2750W
Power supply note	4 power supply slots 2 minimum power supply required for a fully loaded chassis (or with 8 line modules) HPE Aruba Networking X382 54VDC 2700W AC Power Supply (JL372A)
Other features
Performance management	SNMP RJ-45 for serial console USB Type-A for file management only RJ-45 Ethernet for OOBM
Memory and processor	Intel Xeon D-15xx (Intel Broadwell-DE), 4 cores, 2.2 GHz, 32 GB GDDR5 DRAM (2 x 16 GB), SSD 120 GB, 6 Gb/s SATA M.2
Fan	Included with JL376A
Weight (imperial)	116.3 lbs
I/O ports	Supports a maximum of 256 10GbE (SFP/SFP+) or 25G (SFP/SFP+/SFP28) ports, or 64 40GbE (QSFP+) ports, or 48 ports 40/100GbE (QSFP28) combination. 8 I/O module slots
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	13.8" (351 mm)
Depth	17.4" (442 mm)
Height	28" (711 mm)
Weight	116.4 lbs (52.8 kg)
