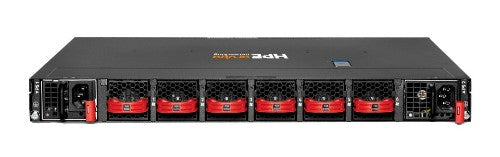

HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6Fs 2AC PSU Switch Bdl

HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6Fs 2AC PSU Switch Bdl, 5000 Mpps, 220 - 240 V, 600 W, 600W or 615W, Idle: 210W or 221W maximum depending on the model, CX 9300-32D: 128 GB m.2 SSD, 4 GB mSATA, 128 MB SPI Flash, 16 GB x2 SODIMM CX 9300S-32C8D: 128 GB..., CX 9300-32D: SNMP REST RJ-45 serial Micro USB console port RJ-45 OOBM Port CX 9300S-32C8D: SNMP...

Reasons To Buy

High performance and scale

The HPE Aruba Networking CX 9300 Switch Series meets the modern demands of large-scale virtualized and cloud networks. Provides flexible, cost-effective, high-density 100/400GbE for servers, storage, and intra-fabric connectivity.
The HPE Aruba Networking CX 9300 Switch Series with breakout cabling scalability allows a single 200GbE split into two 100GbE links, 100GbE ports can breakout to four 25GbE ports linking one switch port and accommodating up to four adapter cards in servers or other subsystems.
The HPE Aruba Networking CX 9300 Switch Series eases transition from 10GbE and 25GbE to 100GbE/400GbE providing higher scaling with reduced power and a smaller footprint. 400 Gbps port can be configured as 4 x 100GbE, 2 x 200GbE, or 1 x 400GbE.

Ethernet storage fabric optimized

The HPE Aruba Networking CX 9300 Switch Series enables low-latency and “lossless” network quality of service (QoS) and connectivity characteristics that storage requires.
Ideal for software-defined storage and HCI solutions, where multiple servers share captive (SSD/flash-based) storage resources.
Ideal solution for data center, cloud, and storage use cases that support top-of‐rack server and storage connectivity and scale-out leaf‐spine fabrics.

Intelligent analytics

HPE Aruba Networking Network Analytics Engine (NAE) provides the ability to monitor and troubleshoot the network, system, application and security related issues easily, through simple Python agents and REST APIs.
Intelligent pre-processing of data turns raw telemetry into actionable insights.
HPE Aruba Networking Switch Multi-Edit Software support automated configuration and verification.

High performance and high availability

The HPE Aruba Networking Virtual Switching Extension (VSX) is a high availability technology designed from the ground up to deliver continuous availability, virtualization, and simplicity requirements. Redundant and hot-swappable power supplies and fans provide additional resiliency.
HPE Aruba Networking CX 9300 Switch Series delivers advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6. The switch series supports dynamic VXLAN with BGP-EVPN for deep segmentation in data center and campus networks.

Description

HPE Aruba Networking CX 9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6Fs 2AC PSU Switch Bdl. Throughput: 5000 Mpps. AC input voltage: 220 - 240 V, Power consumption (max): 600 W, Power consumption note: 600W or 615W, Idle: 210W or 221W maximum depending on the model. Memory and processor: CX 9300-32D: 128 GB m.2 SSD, 4 GB mSATA, 128 MB SPI Flash, 16 GB x2 SODIMM CX 9300S-32C8D: 128 GB..., Performance management: CX 9300-32D: SNMP REST RJ-45 serial Micro USB console port RJ-45 OOBM Port CX 9300S-32C8D: SNMP..., Fan: 6 redundant fans, field-replaceable, hot-swappable. Width: 1.71" (43.5 mm), Depth: 17.3" (438.4 mm), Height: 23.2" (590 mm). Power supply note: 2 redundant power supplies, field-replaceable, hot-swappable

Specifications

Data transmission
Throughput	5000 Mpps
Power
AC input voltage	220 - 240 V
Power consumption (max)	600 W
Power consumption note	600W or 615W, Idle: 210W or 221W maximum depending on the model
Power supply note	2 redundant power supplies, field-replaceable, hot-swappable
Other features
Performance management	CX 9300-32D: SNMP REST RJ-45 serial Micro USB console port RJ-45 OOBM Port CX 9300S-32C8D: SNMP REST RJ-45 and USB-C serial console connectors RJ-45 OOBM Port
Memory and processor	CX 9300-32D: 128 GB m.2 SSD, 4 GB mSATA, 128 MB SPI Flash, 16 GB x2 SODIMM CX 9300S-32C8D: 128 GB m.2 SSD, 16 MB SPI Flash, 32 GB x2 SODIMM
Fan	6 redundant fans, field-replaceable, hot-swappable
Weight (imperial)	26.12 lbs
I/O ports	CX 9300-32D: 32 ports of 100GbE, 200GbE, or 400GbE 400 Gbps ports can be configured as 4 x 100GbE, 2 x 200GbE, or 1 x 400GbE CX 9300S-32C8D: 32 ports of 10/25/100/200GbE, 8 ports of 400GbE Flexibility to support 10/25/100/200GbE on the access ports
Dimensions (W x D x H) (imperial)	1.71 x 17.26 x 23.23"
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Weight & dimensions
Width	1.71" (43.5 mm)
Depth	17.3" (438.4 mm)
Height	23.2" (590 mm)
Weight	26 lbs (11.8 kg)
