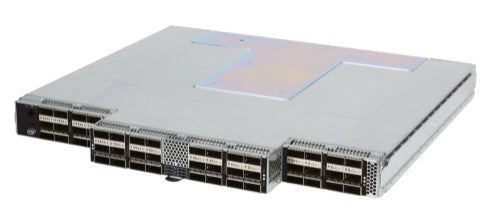

HPE Intel Omni-Path Architecture 100Gb 48-port Unmanaged Switch

HPE Intel Omni-Path Architecture 100Gb 48-port Unmanaged Switch, Unmanaged, 100 Gigabit Ethernet, Rack mounting, 1U

Reasons To Buy

High Bandwidth, Low Latency High Speed Fabric Connectivity for HPC Deployments

The HPE Apollo 100Gb 48-port Intel Omni-Path Unmanaged Switch provides 100 Gb node to node connectivity for increased performance.
Latency efficient error detection and correction for network communication resiliency.
Traffic flow optimization for throughput efficiency.

Optimize High Speed Switch Ports

The HPE Apollo 100Gb 48-port Intel Omni-Path Unmanaged Switch is an integrated OPA switch supporting 24 100Gbps downlink ports and 24 QSFP28 uplink ports for optimal 1:1 non-oversubscription deployments.
Up to two switches per chassis are supported for dual rail configuration providing twice the bandwidth.

Lower Cost of High Speed Fabric Deployments

The HPE Apollo 100Gb 48-port Intel Omni-Path Unmanaged Switch supports FatTree and its variations lower the number of cables, improves system reliability and enables easier maintenance.
Provides flexibility of copper and optical cables.
The switch is unmanaged from configuration standpoint and is monitored, discovered and cooled thru chassis controller.

Description

HPE Intel Omni-Path Architecture 100Gb 48-port Unmanaged Switch. Switch type: Unmanaged. Switching optical modules type: 100 Gigabit Ethernet. Console port: USB. MAC address table: 8192 entries. Rack mounting, Form factor: 1U

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	USB
QSFP28 ports quantity	48
Switching optical modules type	100 Gigabit Ethernet
Optical fiber
Switching optical modules type	100 Gigabit Ethernet
Data transmission
MAC address table	8192 entries
Throughput	9600 Mpps
Protocols
Supported protocols	Intel Omni-Path
Design
Rack mounting	Yes
Product colour	Metallic
Form factor	1U
Performance
Media types supported	Support QSFP28 passive copper and active optical cables
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	238 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Weight (imperial)	14.7 lbs
Dimensions (W x D x H) (imperial)	17.3 x 16.8 x 1.7"
Supported protocols	Intel Omni-Path
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	17.3" (439.6 mm)
Depth	16.8" (426.7 mm)
Height	1.7" (43.2 mm)
Weight	14.7 lbs (6.67 kg)
System requirements
Media types supported	Support QSFP28 passive copper and active optical cables
