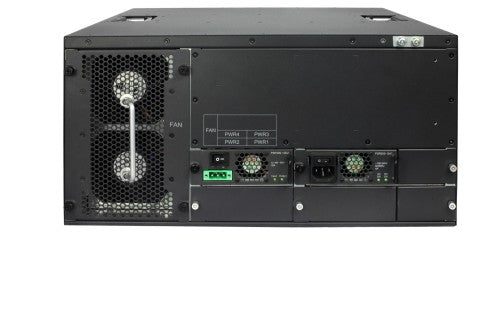

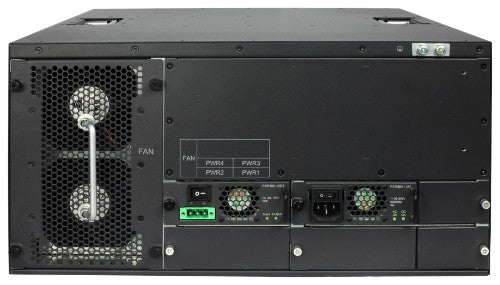

HPE Networking Comware MSR4080 Router Chassis

HPE Networking Comware MSR4080 Router Chassis, Ethernet WAN, Gigabit Ethernet, Black, Silver

Key Features

• 2 MPU (Main Processing Unit) slots
• 1 SPU (Service Processing Unit) slot
• 8 HMIM slots
• 4 Power Supply slots

Reasons To Buy

Reduces Complexity and Simplifies Your Network

The HPE Networking Comware Router Series MSR4000 simplifies your network through integrated routing, switching, security, voice, and VPN, and combines the flexibility of modular upgrades to deliver high-performance large branch routing.
Makes administration easier with HPE Intelligent Management Center (IMC) Software.
Reduces management complexity with Zero-Touch Provisioning deployment (ZTP) and Dynamic VPN.

Enhances Time to Service and Branch Performance

The HPE Networking Comware Router Series MSR4000 offers high-performance routing with up to 36 Mpps forwarding and 28 Gbps of IPSec encryption throughput to meet the bandwidth demands of the branch.
Supports branch services with a comprehensive feature set and eases the cloud transition with integrated security.
Delivers powerful aggregation capacity and high port density to satisfy the largest branches.
These routers also support HPE Open Application Platform (OAP) modules to deliver integrated industry-leading HPE AllianceOne partner applications such as virtualization, unified communications and collaboration (UC&C), and application optimization capabilities.
The MSR4000 series provides a full-featured, resilient routing platform, including IPv6 and Multiprotocol Label Switching (MPLS), with up to 36 Mpps forwarding capacity and 28 Gbps of IPSec Virtual Private Networks (VPN) encrypted throughput.

Increases Your Return on Investment

The HPE Networking Comware Router Series MSR4000 is a modular platform with a wide range of connectivity options that enables the right design for your needs.
Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
Deploy advanced features with no additional licensing.
The MSR4000 Series provides an agile, flexible network infrastructure that enables you to quickly adapt to your changing business requirements while delivering integrated concurrent services on a single, easy-to-manage platform.

Boosts Large Branch Agility and Resiliency

The HPE Networking Comware Router Series MSR4000 is built on distributed architecture with separate hardware data and control planes for increased resiliency.
Facilitates high reliability with 4G/LTE and 3G WAN, dual MPUs, redundant power supplies.
Gives you an open standards approach to networking with the Open Application Platform module by supporting HPE AllianceOne applications such as WAN acceleration and Microsoft Skype for Business (Lync).

Description

HPE Networking Comware MSR4080 Router Chassis. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Routing protocols: RIP-1, RIP-2, IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL). Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, MAC address table: 1000000 entries. Processor frequency: 1000 MHz, Flash memory: 512 MB, Internal memory: 2048 MB. Product color: Black, Silver, Rack capacity: 5U

Specifications

Ethernet LAN features
Ethernet LAN data rates	10,100,1000 Mbit/s
Network
MAC address table	1000000 entries
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
Traffic control	Yes
Port forwarding	Yes
Forwarding rate	36 Mpps
Multicast support	Yes
VLAN support	Yes
Ethernet interface type	Gigabit Ethernet
Performance
Flash memory	512 MB
Internal memory	2048 MB
Internal memory type	DDR3
Traffic control	Yes
Built-in processor	Yes
Processor frequency	1000 MHz
WAN connection
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	Yes
Management features
Web-based management	No
Quality of Service (QoS) support	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	6
I/O ports	2 MPU (Main Processing Unit) slots; 1 SPU (Service Processing Unit) slot; 8 HMIM slots; 4 Power Supply slots; Included
Number of MPU slots	2
Protocols
DHCP server	Yes
DHCP client	Yes
Routing protocols	RIP-1, RIP-2
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Security
MAC address table	1000000 entries
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1
Firewall	Yes
ARP attack prevention	Yes
Access Control List (ACL)	Yes
ICMP attack prevention	Yes
Features
Safety	UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J
Flash memory	512 MB
Internal memory	2048 MB
Internal memory type	DDR3
Built-in processor	Yes
Processor frequency	1000 MHz
Electromagnetic compatibility	EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR 22 Class A; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001
Design
Rack mounting	Yes
Product colour	Black, Silver
Rack capacity	5U
Power
Power source type	PoE
AC input voltage	100 - 240 V
Power over Ethernet (PoE)	Yes
Power consumption (typical)	300 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	17.3" (440 mm)
Depth	18.9" (480 mm)
Height	8.64" (219.5 mm)
Weight	49.8 lbs (22.6 kg)
Dimensions (W x D x H) (imperial)	17.32 x 18.9 x 8.64"
Other features
Memory and processor	: MPU-100, 2 cores RISC @ 1 GHz, 512 MB flash capacity, 2 GB DDR3 SDRAM: SPU-100, 8 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM: SPU-200, 16 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM
Power requirements	No default Power Supply included in the chassis, Min.1/Max.4 power supplies should be ordered
Throughput	36 Mpps
Performance management	IMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; modem interface; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB
Mounting	Desktop or can be mounted in a EIA-standard 19 in. telco rack when used with the rack-mount kit in the package
Management platform	IMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; modem interface; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB
Wireless features	Uses USB memory disk to download and upload configuration or OS image files; supports an external USB 3G/4G modem for a 3G/4G WAN uplink
Weight (imperial)	49.93 lbs
Operating altitude (imperial)	up to 16404 ft
Dimensions (W x D x H) (imperial)	17.32 x 18.9 x 8.64"
System requirements
Memory and processor	: MPU-100, 2 cores RISC @ 1 GHz, 512 MB flash capacity, 2 GB DDR3 SDRAM: SPU-100, 8 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM: SPU-200, 16 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM
Certificates
Safety	UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J
Electromagnetic compatibility	EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR 22 Class A; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001
