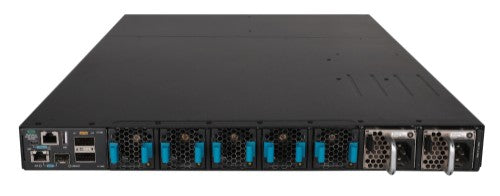

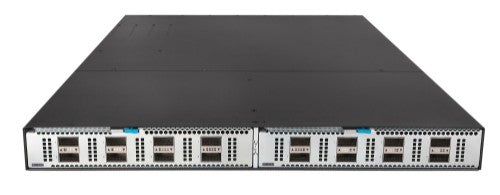

HPE Networking Comware Switch 2-slot 5945

HPE Networking Comware Switch 2-slot 5945, Managed, Rack mounting

Reasons To Buy

High-density, Advanced, Data Center Switches with HPE IMC Orchestrator and Analyzer

The HPE Networking Comware Switch Series 5945 scales server-edge 1/10/25/40/100GbE ToR deployments with high-density options: 48×10GbE plus 6×40GbE or 6×100GbE, 32×40GbE, and 32×100GbE ports.
Available in a 2-slot modular version supporting two 40GbE or 100GbE ports, 48×10/25GbE, 4×100GbE, or up to 16×100GbE through expansion modules for flexible configurations.
A 4-slot modular version is also available with expanded port options, four 40GbE ports, for high-performance networking in demanding data center environments.
HPE IMC Orchestrator and Analyzer offers enhanced network operations with orchestration, automation, and analytical capabilities.

High-performance Data Center Switching

The HPE Networking Comware Switch Series 5945 delivers up to 2.56 Tbps switching capacity for demanding data center applications.
Supports up to 1,904 MPPS throughput for optimized performance in data-intensive environments and mission-critical workloads.
Provides ultra-low latency under 1μs for 40GbE, ensuring faster network response and improved application performance across deployments.
VXLAN support enables network virtualization and overlays for flexibility, with OVSDB integration for dynamic VXLAN tunnel management.

Business Agility and Resilience with Operating System Comware 7

The HPE Networking Comware Switch Series 5945 supports Intelligent Resilient Framework (IRF) with less than 50ms convergence time, enabling faster application response.
In-service software update (ISSU) applies modular updates without reboot or power cycle, ensuring high availability and minimal downtime.

Simplicity and Lower TCO

HPE Networking Comware Switch Series 5945 simplifies switch management with nine-unit IRF stacking for centralized configuration and control across multiple switches in complex networks.
It offers a single license per switch for all operating system features, eliminating hidden costs and simplifying procurement.
All switch ports are active and ready to use without requiring additional activation licenses, reducing complexity and deployment time.

Description

HPE Networking Comware Switch 2-slot 5945. Switch type: Managed. Switching capacity: 3600 Gbit/s. DC input voltage: 48 - 60 V. Rack mounting

Specifications

Management features
Switch type	Managed
Ports & interfaces
SFP module slots quantity	2
Network
10G support	Yes
Data transmission
Switching capacity	3600 Gbit/s
Throughput	2024 Mpps
Packet buffer memory	32 MB
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Performance
Physical stacking (units)	10
Internal memory	8000 MB
Flash memory	1024 MB
Stackable	Yes
Packet buffer memory	32 MB
Harmonized System (HS) code	85176990
Power
AC input voltage	100 - 240 V
Power consumption (typical)	650 W
Power consumption (max)	650 W
DC input voltage	48 - 60 V
Power consumption note	650W
Power supply note	2 power supply slots 1 minimum power supply required (ordered separately)
Other features
Latency	< 1 μs (64-byte packets)
Performance management	HPE Networking Intelligent Management Center (IMC) Command-line interface (CLI) Out-of-band management Simple Network Management Protocol (SNMP) Telnet File Transfer Protocol (FTP) Additional ports: - 1 x console port - 1 x mini USB port - 1 x USB port - 2 x out-of-band management ports (one fiber and one copper port)
Memory and processor	1 GB flash Packet buffer size: 16 MB, 4 GB SDRAM or 32 MB 8 GB SDRAM
Fan	5 fan tray slots (minimum five required)
Weight (imperial)	28.9 lbs
I/O ports	2 module slots 2 x 100G QSFP28 ports Supports up to a maximum of 48 x 10/25GbE and 4 x 100GbE ports, or up to 16 x 100GbE ports from modules.
Dimensions (W x D x H) (imperial)	1.74 x 17.32 x 25.98"
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Heat dissipation	1392 BTU/h
Weight & dimensions
Width	1.74" (44.2 mm)
Depth	17.3" (440 mm)
Height	26" (660 mm)
Weight	22.9 lbs (10.4 kg)
Logistics data
Harmonized System (HS) code	85176990
