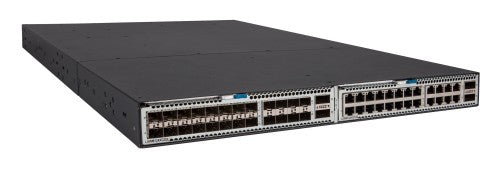

HPE Networking Comware Switch 48XGT 6QSFP28 5940

HPE Networking Comware Switch 48XGT 6QSFP28 5940, 10G Ethernet (100/1000/10000)

Reasons To Buy

High-Performance Data Center Switching

The HPE FlexFabric 5940 Switch Series delivers up to 2.56 Tbps switching capacity for the most demanding data center applications.
It supports up to 1904 MPPS throughput for data-intensive environments.
Low latency, under 1μs for 40GbE, gives your network increased throughput.
VXLAN support for network virtualization and overlay solutions for improved flexibility. Includes Open vSwitch Database (OVSDB) for dynamic VXLAN tunnel management.

High-Density, Advanced, Data Center Switches with HPE FlexFabric Network Analytics

The HPE FlexFabric 5940 Switch Series enables customers to scale their server-edge 10/40/100GbE ToR deployments with high-density 48 x 10GbE (SFP or BASE-T) with 6 x 40GbE ports, 48 x 10GbE (SFP or BASE-T) with 6 x 100GbE ports, and 32 x 40GbE ports, delivered in a 1RU design.
The HPE FlexFabric 5940 Switch Series is also available with a 2-slot modular version delivering 2 40GbE ports and a 4-slot modular version with 4 40GbE ports.
The HPE 5940 Switch Series includes HPE FlexFabric Network Analytics which in conjunction with the HPE IMC Virtual Application Networking Fabric Manager delivers real time visibility of microburst network congestion which negatively impacts overall network operations and performance.

Business Agility and Resilience with Comware 7

The HPE FlexFabric 5940 Switch Series delivers Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) <50 msec convergence time enabling faster application response time.
The In Service Software Update (ISSU) enables high availability with modular updates accomplished without a reboot or power cycle, in the background.

Simplicity and Lower TCO

HPE FlexFabric 5940 Switch Series simplifies switch management by up to 88% with 9-unit Intelligent Resilient Fabric (IRF).
No hidden costs with simple one license per switch for all OS features.
All switch ports are active and ready to use without need for activation licenses.

Description

HPE Networking Comware Switch 48XGT 6QSFP28 5940. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 2160 Gbit/s. DC input voltage: 40 - 60 V

Specifications

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Data transmission
Switching capacity	2160 Gbit/s
Throughput	1607 Mpps
Packet buffer memory	16 MB
Design
Stackable	Yes
Performance
Physical stacking (units)	9
Internal memory	4096 MB
Flash memory	1024 MB
Stackable	Yes
Packet buffer memory	16 MB
Harmonized System (HS) code	85176990
Power
Power supply included	No
AC input voltage	100 - 240 V
Power consumption (max)	320 W
DC input voltage	40 - 60 V
Power consumption note	320 W (maximum)
Other features
Latency	10 Gbps Latency: < 1 μs
Performance management	IMC - Intelligent Management Center Command-line interface Out-of-band management SNMP manager Telnet FTP
Memory and processor	1 GB flash Packet buffer size: 16 MB 4 GB SDRAM
Weight (imperial)	28.66 lbs
Non-operating relative humidity (non-condensing)	10 - 90%
I/O ports	(48) 1/10GBASE-T ports (6) QSFP28 100GbE ports
Dimensions (W x D x H) (imperial)	17.32 x 25.98 x 1.72"
Warranty period	1 year(s)
Weight & dimensions
Width	17.3" (440 mm)
Depth	26" (660 mm)
Height	1.72" (43.6 mm)
Weight	28.7 lbs (13 kg)
Technical details
Warranty period	1 year(s)
Logistics data
Harmonized System (HS) code	85176990
