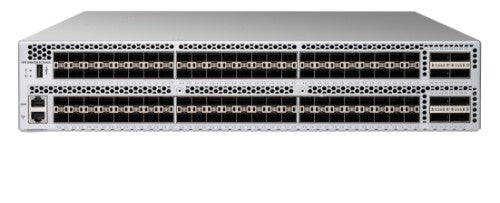

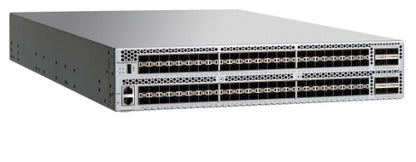

HPE SN6650B 32Gb 128/48 48-port 32Gb Short Wave SFP+ Integrated Fibre Channel Switch

HPE SN6650B 32Gb 128/48 48-port 32Gb Short Wave SFP+ Integrated Fibre Channel Switch, 2U

Reasons To Buy

Flash-Ready Performance

The HPE Storage Fibre Channel Switch B-series SN6650B supports up to 4Tbps bandwidth with very low latency < 780 ns (including FEC) through the use of cut-through switching.
Shatters application performance barriers with up to 200 million IOPS utilizing up to 566 million frame switching per second.
Delivers up to 384Gbps of combined in-flight encryption and 192Gbps of in-flight compression to improve bandwidth and help minimize the risk of unauthorized access.
Built-in ASIC enables I/O insight into NVMe/FC storage traffic with VM-level granularity to validate and fine-tune performance for better efficiency.
Internal fault-tolerant and enterprise-class RAS features help minimize downtime to support growing mission-critical environments.

Easy Manageability with Simple and Open Automation

The HPE Storage Fibre Channel Switch B-series SN6650B provides tools to simplify and automate operations enabling DevOps resources to orchestrate SAN resources through open APIs and the Ansible automation engine.
Easier integration into third-party tools utilizing a library of templates and scripts (REST APIs) to help deploy applications faster.
Supports I/O Insight and VM Insight (included in HPE Power Pack+ software) to provide deeper visibility into FC/NVMe traffic.

Enterprise-class Scalability

HPE Storage Fibre Channel Switch B-series SN6650B delivers industry-leading port density with 128 Fibre Channel ports in an elegant 2U form factor.
Provides 96 32Gb SFP+ ports and eight 4×32Gb QSFP ports to enable data centers to scale efficiently and deliver more connectivity with fewer switches.
Offers cost-effective pay-as-you-grow scalability, expanding from 48 to 128 ports with flexible Ports on Demand (PoD).
Supports 32/16/10/8/4 Gb Fibre Channel.

Description

HPE SN6650B 32Gb 128/48 48-port 32Gb Short Wave SFP+ Integrated Fibre Channel Switch. Form factor: 2U

Specifications

Protocols
Supported protocols	Fibre Channel
Design
Form factor	2U
Performance
Media types supported	Supports 32Gb, 16Gb, 10Gb transceivers and 32Gb & 16Gb QSFP transceivers
Power
Redundant power supply (RPS) support	Yes
Other features
Weight (imperial)	47 lbs
Upgrade type	Activate additional ports using 24 port SFP and 32 port QSFP POD Kit upgrades
Technical features	Hot code load, ports on demand with no downtime; hot-swappable redundant power supplies with integrated cooling fans
Port speed rating	32Gb
Optional software	SANnav, HPE Power Pack+ (Fabric Vision, ISL Trunking, Extended Fabric, Integrated Routing, and FICON CUP)
Dimensions (W x D x H) (imperial)	17.32 x 3.41 x 24"
Supported protocols	Fibre Channel
Weight & dimensions
Width	17.3" (440 mm)
Depth	3.41" (86.7 mm)
Height	24" (609.6 mm)
Weight	47 lbs (21.3 kg)
System requirements
Media types supported	Supports 32Gb, 16Gb, 10Gb transceivers and 32Gb & 16Gb QSFP transceivers
