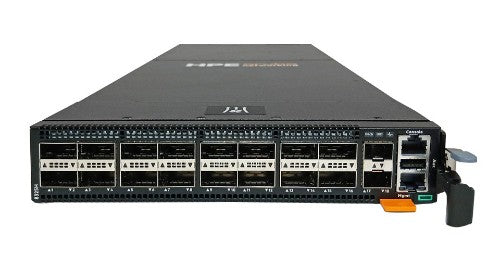

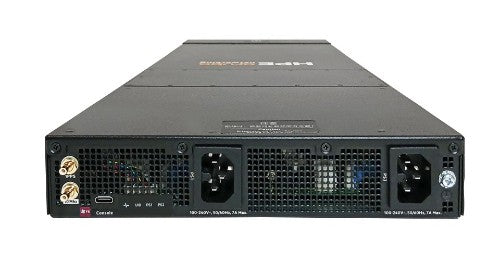

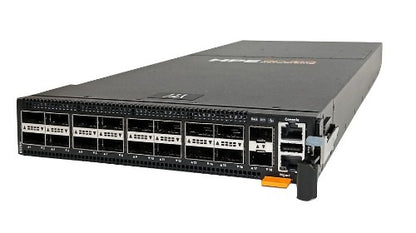

HPE Storage DCN 16p QSFP28 100GbE Connector to Power Half Width Switch H-series SN8325H

HPE Storage DCN 16p QSFP28 100GbE Connector to Power Half Width Switch H-series SN8325H, 1U

Reasons To Buy

Designed for Storage Networks and Hybrid Cloud Applications

Enables low-latency and lossless network QoS and connectivity characteristics that storage and hybrid cloud require.
Designed using the best features of existing HA technologies such as multi-chassis link aggregation (MC-LAG) and virtual switching framework (VSF), HPE Aruba Networking virtual switch exchange (VSX) enables a distributed architecture that is highly available during upgrades or control lane events.
High-performance, high-density 1/10/25/40/100G connectivity half-width, single RU form factor. ASIC switching capacity of 2.16 Tbps (full-duplex) with 18 ports of 1/10/25 and 4 ports of 40/100G and ASIC switching capacity of 4 Tbps (full-duplex) with 16 ports of 40/100G.

New Half-width Switches Run on HPE Aruba Networking CX Operating System

The switch series provides an advanced Layer 2/3 feature set including BGP, OSPF, VRF-Lite, IPv6, dynamic VXLAN and intelligent monitoring, visibility, and remediation with a network analytics engine.

HPE Storage Ethernet Switch H-series SN8325H Half-width Switches are Fully TAA-Compliant

These switches are sourced from TAA-compliant countries to insure compliance with TAA guidelines.

Half-width Switches Provide a Wide Range of Interconnectivity Options Giving Customers Choice

HPE Storage Ethernet Switch H-series SN8325H half-width switches support 100 GbE, 40 GbE, 25 GbE, 10 GbE, and 1 GbE connectivity for your Ethernet fabric network needs.
All QSFP28 ports support breakout to 4x25 GbE, providing broader density options for 25 GbE environments.
All ports can be configured separately and do not have grouping restrictions.

Description

HPE Storage DCN 16p QSFP28 100GbE Connector to Power Half Width Switch H-series SN8325H. Form factor: 1U

Specifications

Protocols
Supported protocols	Ethernet, NVMe-oF
Design
Form factor	1U
Other features
Technical features	N+1 power supplies and fans integrated within the switch, not removable.
Port speed rating	40/100GbE QSFP28 ports
Optional software	HPE Aruba Networking Fabric Composer
Supported protocols	Ethernet, NVMe-oF
