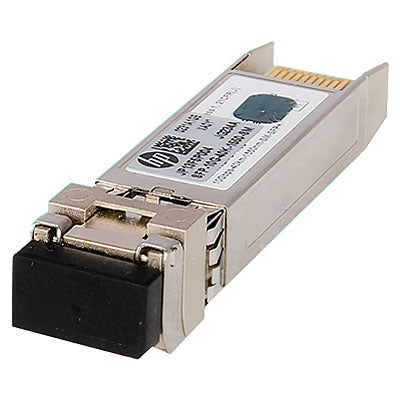

HPE X120 1G SFP LC SX network transceiver module Fiber optic 1000 Mbit/s

X120 1G SFP LC SX transceiver module

Description

Information technology professionals rely on HP quality to ensure maximum productivity. As the power of applications, processors, memory adapters and storage devices increases, high-end computer users are seeking ways to optimize their system performance. HP provides leading solutions, adding new levels of performance, availability, flexibility, and management.

Specifications

Performance
SFP transceiver type	Fiber optic
Interface type	SFP
Maximum data transfer rate	1000 Mbit/s
Fiber optic connector	LC
Auto MDI/MDI-X	Yes
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SX
Hot-Plug support	Yes
Harmonized System (HS) code	85369010
Features
Hot-Plug support	Yes
Certification	MSA
Certificates
Certification	MSA
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 85%
Network
SFP transceiver type	Fiber optic
Interface type	SFP
Maximum data transfer rate	1000 Mbit/s
Fiber optic connector	LC
Weight & dimensions
Width	0.528" (13.4 mm)
Depth	2.22" (56.5 mm)
Height	0.335" (8.5 mm)
Logistics data
Harmonized System (HS) code	85369010
