TP-Link AC1200 Wi-Fi Network repeater White 10, 100 Mbit/s

867 Mbps / 867 Mbps, 300 Mpbs / 2.4 GHz, 10/100Mbps Ethernet, 89×35.0×124.1 mm

Key Features

• Eliminate weak signal areas with whole home WiFi coverage
• 2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) dual-band WiFi connection ensures more stable wireless experience
• EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
• Adaptive Path Selection – connects to the fastest connection path to the router automatically and runs at top-speed
• AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
• Smart signal indicator helps to fi­nd the best location for optimal Wi-Fi coverage by showing the signal strength
• Push the WPS button to easily connect to the router and you can uniformly manage from the Tether app or Web UI
• Works with any Wi-Fi router or wireless access point

Description

Expand Dual Band WiFi Everywhere
AC1200 Mesh WiFi Extender

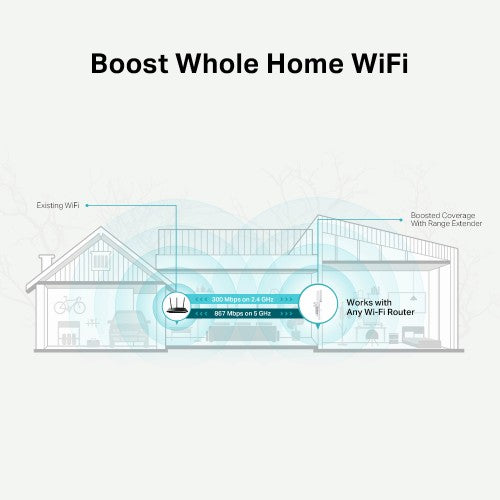

Boost Whole Home WiFi with Your Existing Router
A single router has limited WiFi coverage and always causes WiFi dead zones. RE315 wirelessly connects to your existing router and expands its WiFi signal into areas it can’t reach on its own. Enjoy your stable network experience wherever you are at home.

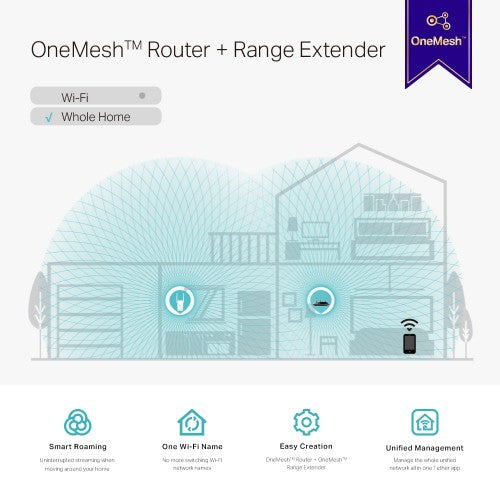

Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another EasyMesh-compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

Faster Dual Band WiFi up to 1200 Mbps
RE315 delivers dual band (2.4 GHz and 5 GHz) to transmit WiFi signals, doubling the performance of each band. It enables you to keep more devices connected at the same time with its 300 Mbps 2.4 GHz and 867 Mbps 5 GHz dual bands. Use the 2.4 GHz band to send email and browse the web and the 5 GHz band for gaming and HD streaming.

Adaptive Path Selection: Keeps Itself Working at Top Speed
Adaptive Path Selection keeps your network running at optimal speeds by automatically choosing the fastest connection path to the router. Always keep your devices fast and stable—ideal for network environments crowded with many devices and applications.

Built-In Access Point Mode
RE315 is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port and easily turn your wired internet connection into a 2×2 MIMO dual band wireless access point.

Secure One-Touch Connection for Easy Setup
Step 1: Simply press the WPS button on your router and, within 2 minutes, the WPS button on RE315 will connect to the network.
Step 2: Once connected, place RE315 at the best location—without reconfiguration.

Find the Best Location with the Smart Signal Indicator
The smart signal indicator lets you see signal strength from the existing router at a glance. Easily to find the best place to position your range extender to extend your WiFi.

Control at Your Fingertips
Set up and manage your WiFi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.

Specifications

Performance
Type	Network repeater
Ethernet LAN data rates	10,100 Mbit/s
Mac compatibility	Yes
Data transfer rate	867 Mbit/s
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Browser supported	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
WPS push button	Yes
Antenna
Antenna type	External
Antennas quantity	2
Transmitting power (CE)	2.4 GHz ≤20dBm, 5 GHz ≤30dBm
Network
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi data rate (max)	1167 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Design
Country of origin	China
Reset button	Yes
Certification	CE, RoHS
LED indicators	Yes
Product colour	White
Quantity per pack	1 pc(s)
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	9.5 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	2.55" (64.8 mm)
Depth	4.89" (124.1 mm)
Height	3.5" (89 mm)
Weight	5.29 oz (150 g)
Packaging content
Quick start guide	Yes
Packaging data
Package type	Box
Package width	3.56" (90.5 mm)
Package depth	6.22" (158 mm)
Package height	4.84" (123 mm)
Package weight	9.52 oz (270 g)
Technical details
Type	Network repeater
Reset button	Yes
Ethernet LAN data rates	10,100 Mbit/s
Data transfer rate	867 Mbit/s
LED indicators	Yes
Antennas quantity	2
WPS push button	Yes
Compliance certificates	CE, RoHS
Certificates
Certification	CE, RoHS
Compliance certificates	CE, RoHS
System requirements
Mac compatibility	Yes
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Browser supported	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Logistics data
Customs product code (TARIC)	8517620000
