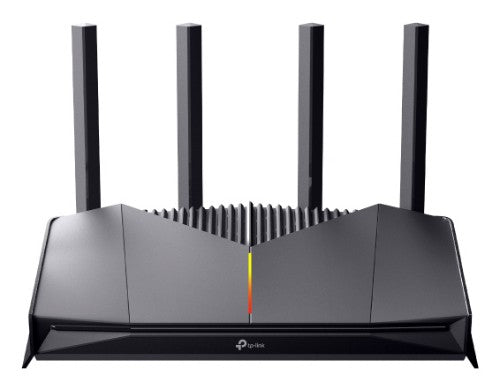

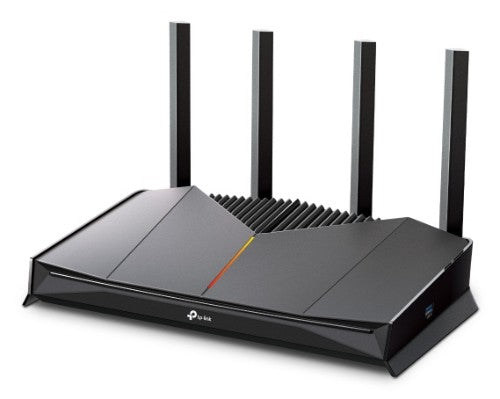

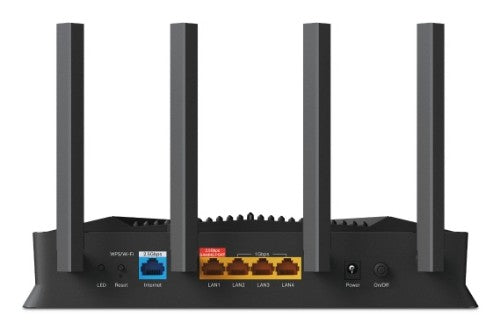

TP-Link Archer GE230 wireless router 2.5 Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz)

Archer GE230 BE3600 Dual-Band Wi-Fi 7 Gaming Router - 1×2.5 Gbps WAN Port + 1×2.5 Gbps LAN Port + 3×1 Gbps LAN Ports§

Description

Flawless Gaming Experience Powered by 3.6 Gbps Wi-Fi 7
Archer GE230 is built to future-proof your gaming with Wi-Fi 7, delivering a super-smooth gaming experience with 4K-QAM and Multi-Link Operation achieving combined speeds of up to 3.6 Gbps.

Empowering your Games with Multi-Gigabit Connectivity
Dedicated Gaming Port
Automatically prioritizes your game device traffic, delivering 2.5G ultra-fast speed.

Unstoppable Turbo Game Acceleration
Archer GE230 enhances your gaming experience by providing advanced acceleration for applications and devices, while intelligently selecting the optimal traffic path for your game connections.

Flexibly Create Whole Home Mesh WiFi
Archer GE230 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh Wi-Fi. No more searching for a stable connection.

KEEP EVERYTHING SECURE
Archer GE230 features HomeShield, with a series of built-in services to provide comprehensive antivirus protection that ensures your total security while gaming online.

Specifications

Ethernet LAN features
Ethernet WAN	Yes
Ethernet LAN interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	1000,2500 Mbit/s
DSL features
DSL WAN	No
Network
Network address translation (NAT)	Yes
Ethernet LAN interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Port forwarding	Yes
Ethernet LAN data rates	1000,2500 Mbit/s
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
PPPoE/PPTP/L2TP pass-through	Yes
Protocols
DMZ support	Yes
Universal Plug and Play (UPnP)	Yes
DHCP server	Yes
Management features
Universal Plug and Play (UPnP)	Yes
WPS push button	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
WAN connection
Ethernet WAN	Yes
DSL WAN	No
WAN connection type	RJ-45
Wireless LAN features
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN data transfer rate (max)	3570 Mbit/s
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band)	688 Mbit/s
WLAN data transfer rate (second band)	2882 Mbit/s
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ports & interfaces
USB port	Yes
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
Security
Security algorithms	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Network address translation (NAT)	Yes
DMZ support	Yes
IGMP snooping	Yes
Certificates
Certification	CE, FCC, RoHS
Antenna
Antenna design	External
Antennas quantity	4
Features
Certification	CE, FCC, RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	10.5" (266.8 mm)
Height	2.31" (58.6 mm)
Depth	6.03" (153.1 mm)
