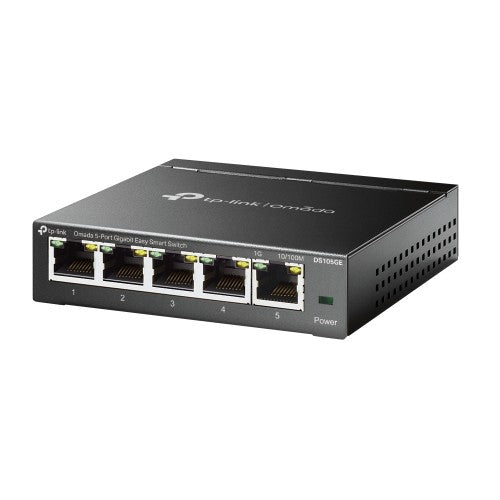

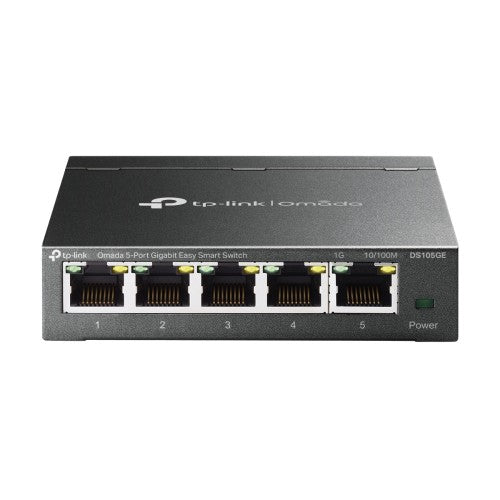

TP-Link Omada DS105GE network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

TP-Link Omada DS105GE network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

$25.07
$25.07
Vente Épuisé
Frais de port calculés lors du paiement. En savoir plus
4 vendu récemment

DESCRIPTION

5-Port Gigabit Easy Smart Switch, Fanless, 2.82 W (220 V/ 50 Hz), 9.62 BTU/h

Key Features

  • 5× 10/100/1000Mbps RJ45 ports
  • Plug and play for instant connectivity
  • Simple configuration via web-based user interface and management utility
  • Durable metal casing of superior quality and professional appearance
  • Green technology reduces power consumption
  • Note: This Omada Easy Smart switch does not support Omada SDN central management

Description

Specifications

Management features
Switch layer L2
Switch type Managed
Reset button Yes
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Power connector DC-in jack
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Number of VLANs 32
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Rate limiting Yes
Port mirroring Yes
Link aggregation Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Broadcast storm control Yes
Auto MDI/MDI-X Yes
10G support No
Auto-negotiation Yes
Virtual LAN features Port-based VLAN, Tagged VLAN
IGMP snooping Yes
Data transmission
MAC address table 2000 entries
Switching capacity 10 Gbit/s
Jumbo frames 16
Store-and-forward Yes
Number of queues 4
Jumbo frames support Yes
Packet buffer memory 1 MB
Forwarding rate 7.4 Mpps
Number of VLANs 32
Security
Loop protection Yes
IGMP snooping Yes
Queue scheduling algorithms Priority queuing (PQ)
Design
Rack mounting No
Product colour Black
Reset button Yes
LED indicators Activity, Link, Power
Housing material Steel
Performance
Fanless Yes
Packet buffer memory 1 MB
Auto-negotiation Yes
Power
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 2.82 W
Input current 0.6 A
DC input voltage 5 V
Power source AC/DC
Power connector DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 9.62 BTU/h
Virtual LAN features
Number of VLANs 32
Virtual LAN features Port-based VLAN, Tagged VLAN
Weight & dimensions
Width 3.94" (100 mm)
Depth 3.86" (98 mm)
Height 0.984" (25 mm)
Packaging content
User guide Yes
Cables included Power
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Packaging data
User guide Yes
Cables included Power
Other features
Ethernet LAN data rates 10,100,1000 Mbit/s
