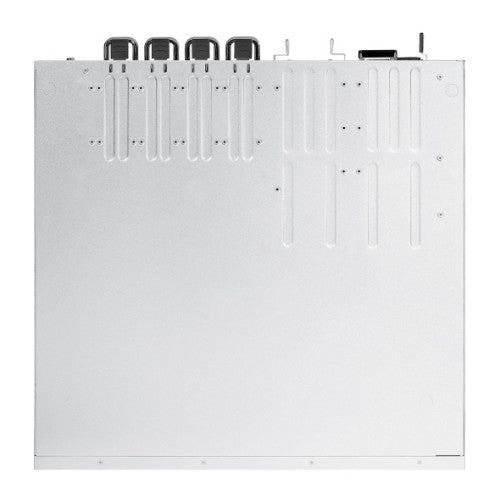

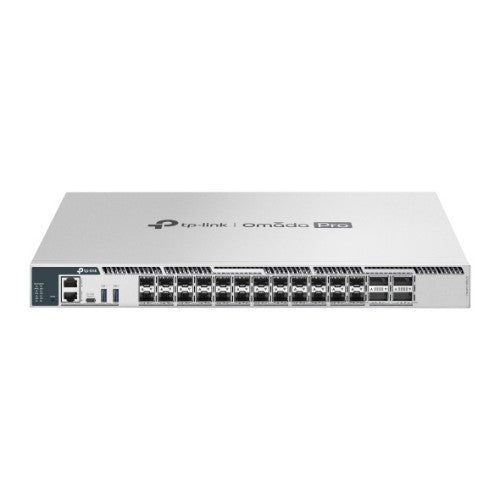

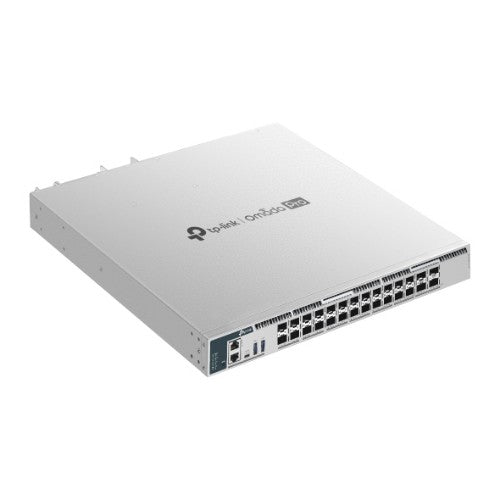

TP-Link Omada Pro S7500-24Y4C network switch Managed L3 Gray

Omada Pro 24-Port 25G Stackable L3 Managed Aggregation/Core Switch with 4 100G Slots

Key Features

• 24× 25 Gbps SFP28 slots and 4× 100 Gbps QSFP28 slots
• Physical stacking for built-in redundancy and performance
• L3 Features: OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
• Security Strategies: Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security
• Highly available with two field-replaceable power supplies,* VRRP, ERPS, BFD
• Easy O&M: NETCONF, Configuration Rollback, Hot Patching, and RSPAN
• Centralized cloud management via the web or the Omada app

Description

What This Product Does
Omada Pro S7500-24Y4C is a high-performance L3 managed switch tailored for the aggregation and core layer, featuring L3 routing, ultra-fast 100 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 24× 25 Gbps SFP28 slots, 4× 100 Gbps QSFP28 slots, physical stacking ability, and centralized management. Integrated with strong security, easy O&A, and extensive management features, S7500-24Y4C offers a dependable networking solution for enterprises, campus, and ISPs.

High-speed Connectivity and Powerful Stacking
24× 25 Gbps SFP28 slots and 4× 100 Gbps QSFP28 slots provide up to 2000 Gbps switching capacity per unit. Physical stacking of up to 12 units△ enhances network performance and redundancy.

Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability.

Comprehensive Security Functions
Defend against a range of network threats with Secure Boot, RADSEC, IMPB, Dynamic ARP Inspection, SFTP, 802.1X, and Secure Shell. Secure Boot protects the operating system from malicious attacks.

Highly Available

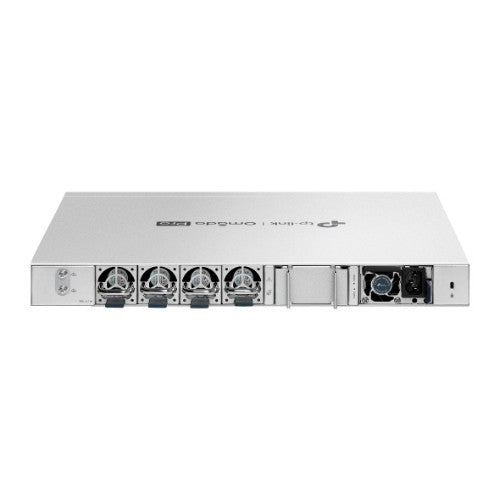

Two field-replaceable redundant power supplies* and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing.

Easy Operation and Maintenance
The switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency. Configuration Rollback restores previous settings if errors occur. Hot patching technology allows software defects to be fixed without device restart, preventing business interruptions.

Omada Pro Integration
Integration into the Omada Pro system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.‡ Omada Pro’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network—all controlled from a single interface.

Apart from central management via the web or Omada app, S7500-24Y4C can be managed through an intuitive web GUI or industry-standard CLI, both secured with SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support provide status polling and abnormal event notifications.

Specifications

Management features
Switch layer	L3
Switch type	Managed
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45/USB Type-C
QSFP28 ports quantity	4
SFP28 ports quantity	24
Network
Networking standards	IEEE 802.1p
Spanning tree protocol	Yes
Rate limiting	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN
IGMP snooping	Yes
Data transmission
MAC address table	128000 entries
Switching capacity	2000 Gbit/s
Jumbo frames	9000
Number of queues	8
Jumbo frames support	Yes
Packet buffer memory	8 MB
Static route	Yes
Forwarding rate	810 Mpps
Security
Static port security	Yes
SSH/SSL support	Yes
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	AAA, RADIUS, TACACS+
DHCP features	DHCP relay, DHCP server
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Gray
LED indicators	Yes
Number of fans	4 fan(s)
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	137.63 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1658.78 BTU/h
Virtual LAN features
Virtual LAN features	IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN
Weight & dimensions
Width	17.3" (440 mm)
Depth	15" (380 mm)
Height	1.73" (44 mm)
Packaging content
Quick start guide	Yes
Cables included	AC, LAN (RJ-45)
Performance
Stackable	Yes
Packet buffer memory	8 MB
Packaging data
Quick start guide	Yes
Cables included	AC, LAN (RJ-45)
