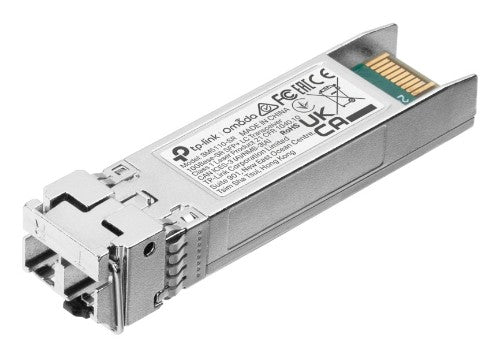

TP-Link Omada SM5110-SR network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm

10Gbase-SR SFP+ LC Transceiver SPEC: 850nm Multi-mode, LC Duplex Connector, Up to 300m Distance

Key Features

• Multi-mode SFP+ LC Transceiver
• Hot-Pluggable with maximum flexibility
• Supports Digital Diagnostic Monitoring (DDM)
• Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
• Compatible with switches with 10G SFP+ ports, like SG3428X, TL-SG3428XMP, and more

Description

The SM5110-SR (TL-SM5110-SR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

Specifications

Performance
SFP transceiver type	Fiber optic
Interface type	SFP+
Maximum data transfer rate	10000 Mbit/s
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC (UPC)
Maximum transfer distance	11811" (300 m)
Wavelength	850 nm
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Multi-mode fiber (MMF) supported	Yes
Product colour	Silver
Hot-swap	Yes
Features
Product colour	Silver
Hot-swap	Yes
Certification	FCC, CE
Power
Input voltage	3.3 V
Certificates
Certification	FCC, CE
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Network
SFP transceiver type	Fiber optic
Interface type	SFP+
Maximum data transfer rate	10000 Mbit/s
Fiber optic connector	LC (UPC)
Weight & dimensions
Width	2.41" (61.3 mm)
Depth	0.571" (14.5 mm)
Height	0.48" (12.2 mm)
Package width	8.66" (220 mm)
Package depth	10.6" (270 mm)
Package height	10.8" (275 mm)
Package weight	2.12 oz (60 g)
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	8.66" (220 mm)
Package depth	10.6" (270 mm)
Package height	10.8" (275 mm)
Package weight	2.12 oz (60 g)
Logistics data
Quantity per pack	1 pc(s)
