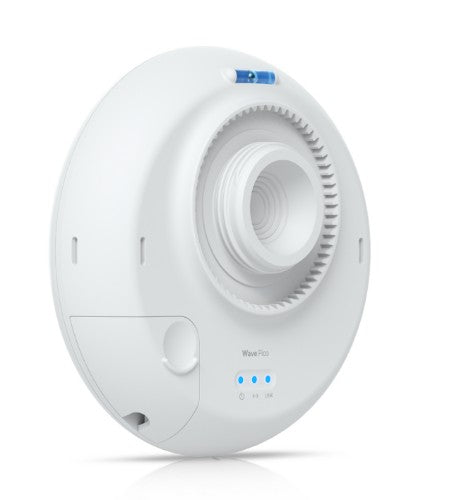

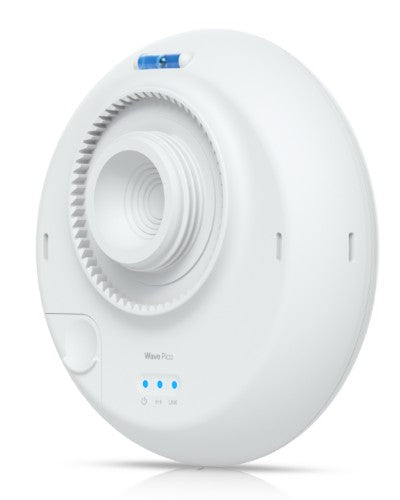

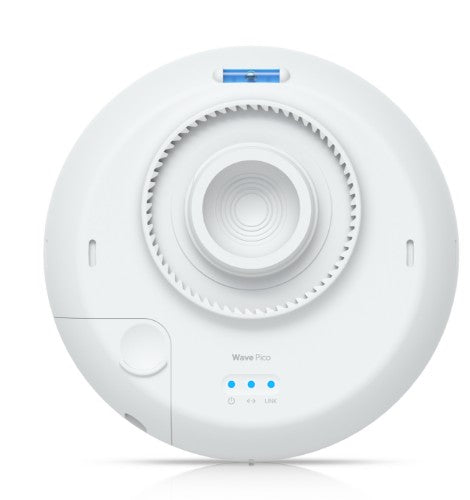

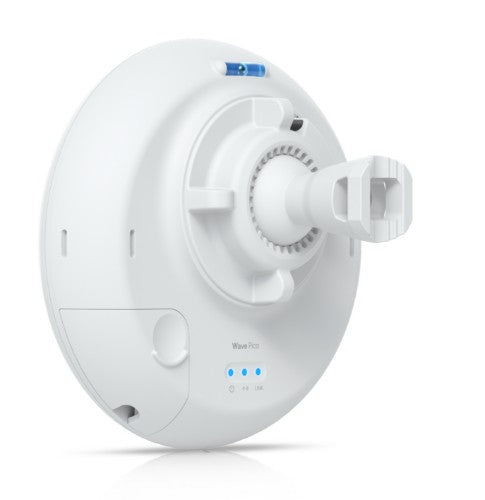

Ubiquiti UISP Wave Pico Network bridge 800 Mbit/s White

Dual-core ARM Cortex-A53 at 1 GHz, 512 MB DDR3L, GbE RJ45, 10W, IPX6, UV stabilized polycarbonate, white

Key Features

• Max. link range: Wave AP: 1.3 km / Wave AP Micro: 0.9 km
• Max. throughput: 2 Gbps (1 Gbps duplex)
• 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
• (1) GbE RJ45 port
• Integrated Bluetooth

Description

Lightweight, compact 60 GHz PtMP station powered by Wave Technology.

Specifications

Data transmission
Maximum data transfer rate	800 Mbit/s
Maximum transfer distance	51181.1" (1300 m)
Antenna
Antenna gain level (max)	27.7 dBi
Antenna design	Internal
Wireless LAN features
Outdoor range	0.9 - 1.3 km
Frequency band	5.18 - 5.875 GHz
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK
Wi-Fi	Yes
Wi-Fi band	Single-band (5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2000 Mbit/s
Ethernet LAN interface type	Multi-Gigabit Ethernet
Ports & interfaces
Connectivity technology	Wired & Wireless
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Security
Security algorithms	SNMP, WPA2-PSK
Features
Product type	Network bridge
Reset button	Yes
Processor family	ARM Cortex
Processor model	Cortex-A53
RAM type	DDR3L
Processor frequency	1000 MHz
Network Time Protocol (NTP) client	Yes
International Protection (IP) code	IPX6
Power LED	Yes
Material	Polycarbonate (PC)
LED indicators	LAN, Link, Power, Status
Internal memory	512 MB
Product colour	White
Processor manufacturer	ARM
Mounting type	Pole
Power
Power consumption (max)	10 W
Power source type	PoE
DC input voltage	44 - 54 V
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 140 °F
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Weight & dimensions
Weight	12.2 oz (347 g)
Width	5.99" (152.1 mm)
Depth	2.2" (55.8 mm)
Height	5.99" (152.1 mm)
Technical details
Quantity per pack	1 pc(s)
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Processor
Processor family	ARM Cortex
Processor model	Cortex-A53
Processor frequency	1000 MHz
Processor manufacturer	ARM
Memory
RAM type	DDR3L
Packaging content
Quick installation guide	Yes
Packaging data
Quantity per pack	1 pc(s)
