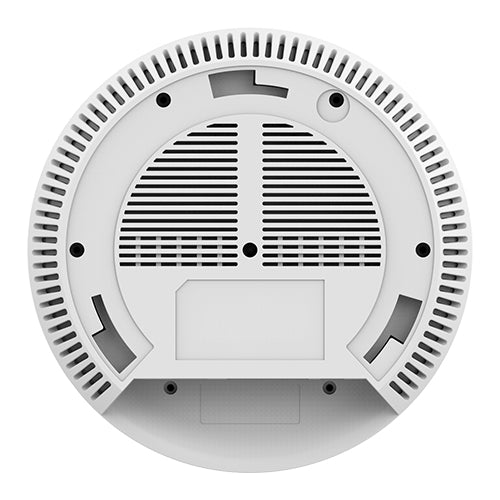

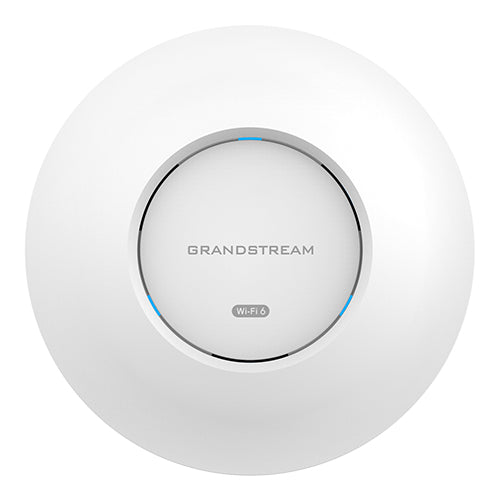

Grandstream Networks GWN7660 wireless access point 1770 Mbit/s White Power over Ethernet (PoE)

IEEE 802.11 a/b/g/n/ac/ax, 5G/2.4GHz, 2x2:2 MU-MIMO, 2x Gigabit Ethernet ports

Key Features

• 1.77Gbps aggregate wireless throughput and 2x Gigabit Ethernet ports
• Dual-band 2x2:2 MUMIMO with DL/UL OFDMA technology
• Up to 175-meter coverage range
• Supports 256 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto detection of PoE or PoE+
• Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller

Description

The GWN7660 is an enterprise-grade 802.11ax Wi-Fi 6 access point and offers dual-band 2x2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput, that allows businesses to build next-generation Wi-Fi networks for high-density environments.

The GWN7660 offers dual-band 2x2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7660 uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface. The GWN7660 is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi -Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 256 concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, GWN7660 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.

Specifications

Performance
Maximum data transfer rate	1770 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum indoor range	6889.8" (175 m)
Certification	FCC, CE, RCM, IC
MIMO	Yes
Features
Maximum data transfer rate	1770 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum indoor range	6889.8" (175 m)
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	573.5 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Security
Security algorithms	WEP, WPA, WPA2, WPA2-PSK, WPA3
Number of SSID supported	32
Protocols
Supported network protocols	IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Power
Power consumption (max)	9 W
Power over Ethernet (PoE)	Yes
Design
Placement	Wall
LED indicators	Status
Product colour	White
Cable lock slot	Yes
Certification	FCC, CE, RCM, IC
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antenna gain level (max)	4 dBi
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	7.1" (180.4 mm)
Depth	7.1" (180.4 mm)
Height	1.61" (40.8 mm)
Weight	15.6 oz (443 g)
Package width	9" (228.5 mm)
Package depth	8.66" (220 mm)
Package height	3.11" (79 mm)
Package weight	27.3 oz (774 g)
Packaging data
Package width	9" (228.5 mm)
Package depth	8.66" (220 mm)
Package height	3.11" (79 mm)
Package weight	27.3 oz (774 g)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 60 °C
Logistics data
Harmonized System (HS) code	85176990
