Grandstream Networks GWN7661E wireless access point 1201 Mbit/s White Power over Ethernet (PoE)

IEEE 802.11 a/b/g/n/ac/ax, 5G/2.4GHz, 3x3:2 MU-MIMO, 3x Gigabit Ethernet portsб 241 п

Key Features

• 3 Gbps wireless throughput and 4x Gigabit wireline ports
• 2x2:2 (2.4G) and 3x3:2 (5G) MU-MIMO and OFDMA technology
• Supports up to 256 concurrent Wi-Fi client devices
• Self-power adaptation upon auto-detection of PoE or PoE+
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

Description

The GWN7661E is an in-wall AX3000 Wi-Fi 6 access point designed for offices, hotels, homes, apartments, and more. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream's Wi-Fi capable IP phones.

Specifications

Performance
Maximum data transfer rate	1201 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum indoor range	3937" (100 m)
MIMO	Yes
Features
6 GHz	No
Maximum data transfer rate	1201 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum indoor range	3937" (100 m)
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	573.5 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Security
Security algorithms	WEP, WPA, WPA2, WPA2-PSK, WPA3
Number of SSID supported	32
Protocols
Supported network protocols	IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
Ports & interfaces

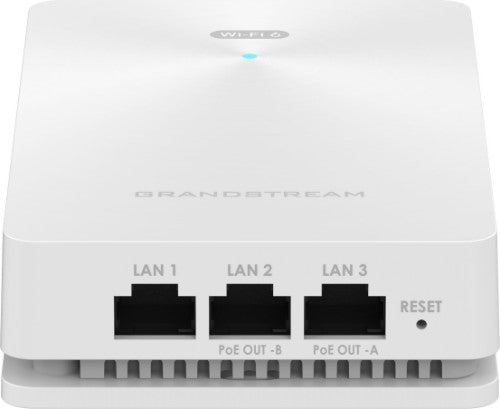

Ethernet LAN (RJ-45) ports	3
Power
Power consumption (max)	9 W
Power over Ethernet (PoE)	Yes
Design
Placement	Wall
LED indicators	Status
Product colour	White
Antenna
Antenna type	Internal
Antenna gain level (max)	5 dBi
Technical details
Compliance certificates	CE, RCM, UKCA
Certificates
Compliance certificates	CE, RCM, UKCA
Weight & dimensions
Width	3.39" (86 mm)
Depth	5.31" (135 mm)
Height	1.52" (38.5 mm)
Weight	8.5 oz (241 g)
Package width	4.67" (118.5 mm)
Package depth	6.93" (176 mm)
Package height	2.56" (65 mm)
Package weight	12.7 oz (361 g)
Packaging data
Package width	4.67" (118.5 mm)
Package depth	6.93" (176 mm)
Package height	2.56" (65 mm)
Package weight	12.7 oz (361 g)
Packaging content
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-30 - 60 °C
Logistics data
Quantity per pack	1 pc(s)
