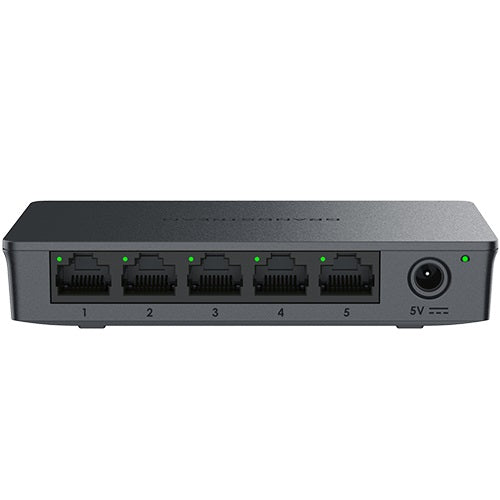

Grandstream Networks GWN7700 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

Plastic, Half/Full-Duplex, 10Gbps, 5VDC/0.6A, 1.7W, 120 x 65 x 24.5mm

Key Features

• 5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
• Green technology reduces power consumption
• LED Indicators; Per port: Link/Activity/Speed, Per Port: PoE output (GWN7701PA/GWN7702P), Per device: Power
• Auto MDI/MDIX crossover for all ports
• 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/
• GWN7701PA/GWN7702P only)
• Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
• Supports long cable connection
• QoS - Supports Default Strict Priority when present

Description

The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add highspeed
Gigabit connectivity to home offices and small-to-medium sized businesses.

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Flow control support	Yes
Ethernet LAN data rates	10 Mbit/s
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
MAC address table	2 entries
Switching capacity	10 Gbit/s
Jumbo frames	9000
Jumbo frames support	Yes
Security
MAC address filtering	Yes
IGMP snooping	Yes
Multicast features
Multicast support	Yes
Design
Product colour	Black
LED indicators	Activity, Power
Housing material	Plastic
Certification	FCC, CE, RCM, IC, UKCA
Power
Power supply included	Yes
Power consumption (max)	1.7 W
Input current	0.6 A
DC input voltage	5 V
Power source	DC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	60 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	2.56" (65 mm)
Depth	4.72" (120 mm)
Height	0.965" (24.5 mm)
Weight	3.53 oz (100 g)
Packaging data
Package width	3.56" (90.5 mm)
Package depth	8.78" (223 mm)
Package height	2.13" (54 mm)
Package weight	8.82 oz (250 g)
Performance
Auto-negotiation	Yes
Certificates
Certification	FCC, CE, RCM, IC, UKCA
Other features
Ethernet LAN data rates	10 Mbit/s
