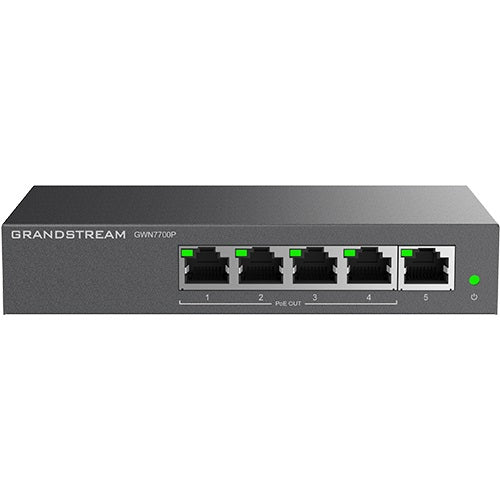

Grandstream Networks GWN7700P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Grandstream Networks GWN7700P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

$46.12
$46.12
Sale Sold out
Shipping calculated at checkout. Learn more
2 sold in recently

DESCRIPTION

Metal, 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex, 10Gbps, 48-53.5VDC/1.22A, 2W, 145 x 80 x 27mm

Key Features

  • 5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
  • Green technology reduces power consumption
  • LED Indicators; Per port: Link/Activity/Speed, Per Port: PoE output (GWN7701PA/GWN7702P), Per device: Power
  • Auto MDI/MDIX crossover for all ports
  • 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/
  • GWN7701PA/GWN7702P only)
  • Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
  • Supports long cable connection
  • QoS - Supports Default Strict Priority when present

Description

Specifications

Management features
Switch type Unmanaged
Quality of Service (QoS) support Yes
Multicast support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Network
Networking standards IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
MAC address auto-learning supported Yes
MAC address auto-aging supported Yes
Flow control support Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Auto MDI/MDI-X Yes
Auto-negotiation Yes
IGMP snooping Yes
Data transmission
MAC address table 2 entries
Switching capacity 10 Gbit/s
Jumbo frames 9000
Jumbo frames support Yes
Security
MAC address filtering Yes
IGMP snooping Yes
Multicast features
Multicast support Yes
Design
Product colour Black
LED indicators Activity, Link
Housing material Metal
Certification FCC, CE, RCM, IC, UKCA
Power
Power supply included Yes
Power consumption (max) 2 W
Input current 1.22 A
DC input voltage 48 V
Power source DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 60 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 3.15" (80 mm)
Depth 5.71" (145 mm)
Height 1.06" (27 mm)
Weight 9.17 oz (260 g)
Packaging data
Package width 7.48" (190 mm)
Package depth 9.06" (230 mm)
Package height 2.01" (51 mm)
Package weight 26.5 oz (750 g)
Performance
Auto-negotiation Yes
Certificates
Certification FCC, CE, RCM, IC, UKCA
Other features
Ethernet LAN data rates 10,100,1000 Mbit/s

PRODUCT DETAILS

DETAILS INFO

SKU:GWN7700P
Vendor: Grandstream Networks
Collections: Network Switches
