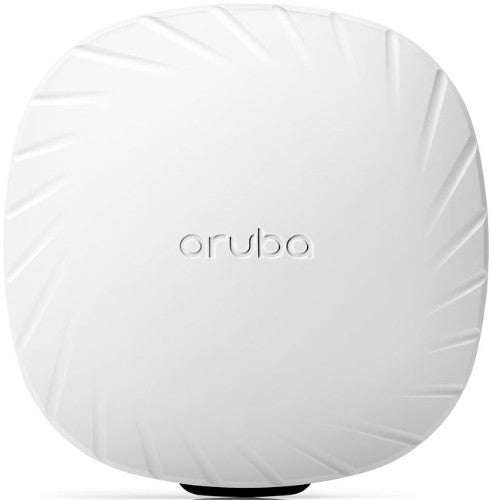

HPE AP-503 1490 Mbit/s White Power over Ethernet (PoE)

Aruba Access Point-503 (US) Dual Radio 2x2:2 802.11ax Wi-Fi 6 Campus Access Point

Description

The Aruba 503 Series Access Points (APs) provide costeffective, high-performance connectivity for any organization experiencing device growth due to increased mobility, the shift to cloud, or IoT. With a maximum real-world aggregate data rate of 1.49 Gbps (HE80/HE20), the 503 Series deliver the speed and reliability needed for medium-density
venues and workplaces such as schools, midsize offices, and retailers. Each 503 Series AP provides connectivity for a maximum of 256 associated clients per radio (512 in total).

Specifications

Performance
Maximum data transfer rate	1490 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Reset button	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az
MIMO	Yes
Features
6 GHz	No
Maximum data transfer rate	1490 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az
Cabling technology	10/100/1000Base-T(X)
MIMO	Yes
Trusted Platform Module (TPM)	Yes
Security
Security algorithms	WPA3, WPA, WPA2
Ports & interfaces
USB connector type	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
Cabling technology	10/100/1000Base-T(X)
Power
Power over Ethernet (PoE)	Yes
Design
Reset button	Yes
LED indicators	Reset, Status, System
Product colour	White
Antenna
Antenna type	Internal
Antenna gain level (max)	4.8 dBi
Antenna direction type	Omni-directional
Weight & dimensions
Width	5.71" (145 mm)
Depth	1.38" (35 mm)
Height	5.71" (145 mm)
Weight	8.99 oz (255 g)
Package width	7.72" (196 mm)
Package depth	7.2" (183 mm)
Package height	2.64" (67 mm)
Package weight	18.2 oz (515 g)
Packaging data
Package width	7.72" (196 mm)
Package depth	7.2" (183 mm)
Package height	2.64" (67 mm)
Package weight	18.2 oz (515 g)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Storage relative humidity (H-H)	10 - 100%
