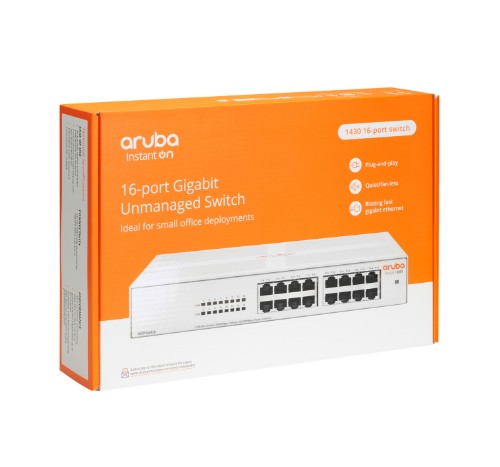

HPE Aruba Instant On 1430 16G Unmanaged L2 Gigabit Ethernet (10/100/1000)

HPE Aruba Instant On 1430 16G, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting

Description

HPE Aruba Instant On 1430 16G. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8192 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Rack mounting

Specifications

Management features
Switch layer	L2
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Flow control support	Yes
Auto-sensing	Yes
10G support	No
Half duplex	Yes
Data transmission
MAC address table	8192 entries
Switching capacity	32 Gbit/s
Jumbo frames	9216
Throughput	23.8 Mpps
Latency (10-100 Mbps)	2.7 µs
Latency (1 Gbps)	1.8 µs
Jumbo frames support	Yes
Packet buffer memory	2 MB
Design
Rack mounting	Yes
Stackable	No
Performance
Memory type	EEPROM
Stackable	No
Packet buffer memory	2 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	7.9 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Width	10.8" (275 mm)
Depth	10.2" (258 mm)
Height	1.73" (44 mm)
Weight	3.79 lbs (1.72 kg)
