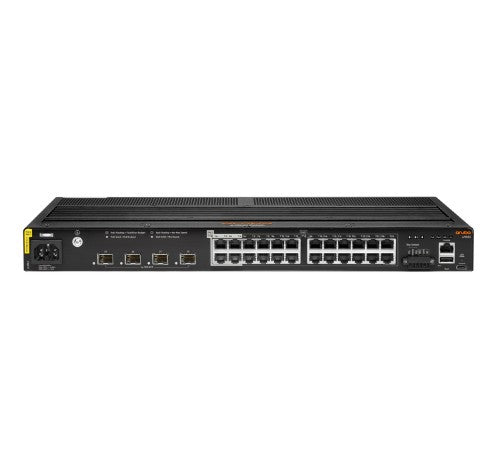

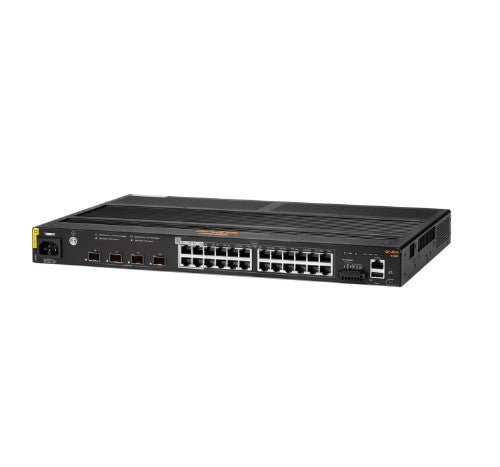

HPE Aruba Networking 4100i 24p 1GbE 20p Class4 POE and 4p Class6 PoE 4p SFP+ Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

HPE Aruba Networking 4100i 24p 1GbE 20p Class4 POE and 4p Class6 PoE 4p SFP+, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Description

HPE Aruba Networking 4100i 24p 1GbE 20p Class4 POE and 4p Class6 PoE 4p SFP+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/USB Type-C. MAC address table: 8192 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L2
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4
Console port	RJ-45/USB Type-C
USB Type-A ports quantity	1
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
Number of VLANs	4094
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
MAC address table	8192 entries
Switching capacity	128 Gbit/s
Throughput	95 Mpps
Latency (1 Gbps)	1.585 µs
Latency (10 Gbps)	1.243 µs
Jumbo frames support	Yes
Packet buffer memory	12.38 MB
Number of VLANs	4094
Security
Authentication	MAC-based authentication, Web-based authentication
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS
DHCP features	DHCP relay, DHCP snooping
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMPv1, SNMPv2c, SNMPv3
Design
Rack mounting	Yes
Stackable	No
Form factor	1U
Performance
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	32768 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Stackable	No
Packet buffer memory	12.38 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	300 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	240 W
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 165354.3" (0 - 4200 m)
Non-operating altitude	0 - 181102.4" (0 - 4600 m)
Heat dissipation	117 BTU/h
Virtual LAN features
Number of VLANs	4094
VLAN support	Yes
Weight & dimensions
Width	17.5" (444.5 mm)
Depth	12" (304.4 mm)
Height	1.73" (44 mm)
