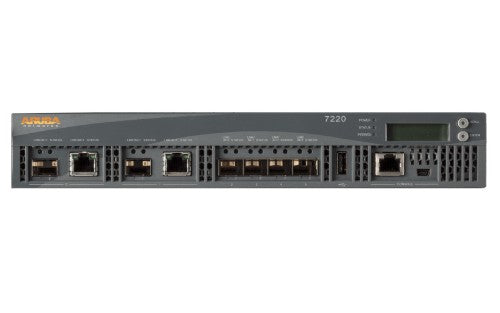

HPE Aruba Networking 7220 (RW) network management device 40000 Mbit/s Ethernet LAN Power over Ethernet (PoE)

HPE Aruba Networking 7220 (RW), 40000 Mbit/s, IEEE 802.11ac, 1000,10000 Mbit/s, RJ-45, 350 W, 100 - 240 V

Description

HPE Aruba Networking 7220 (RW). Firewall throughput: 40000 Mbit/s. Networking standards: IEEE 802.11ac, Ethernet LAN data rates: 1000,10000 Mbit/s. Console port: RJ-45. Power supply: 350 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Rack capacity: 1U, Product color: Gray

Specifications

Performance
Number of LAN Access Points (max)	1024
Number of Remote Access Points (max)	1024
Firewall throughput	40000 Mbit/s
Concurrent IPSec tunnels	24576
Concurrent connections	24576
Number of VLANs	4094
Network
Ethernet LAN	Yes
Ethernet LAN data rates	1000,10000 Mbit/s
Networking standards	IEEE 802.11ac
Management features
VLAN support	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Installed SFP modules quantity	4
Console port	RJ-45
USB 2.0 ports quantity	1
Power
Power supply	350 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	Yes
Power consumption (typical)	125 W
Design
Product colour	Gray
Rack capacity	1U
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Weight	16.4 lbs (7.45 kg)
