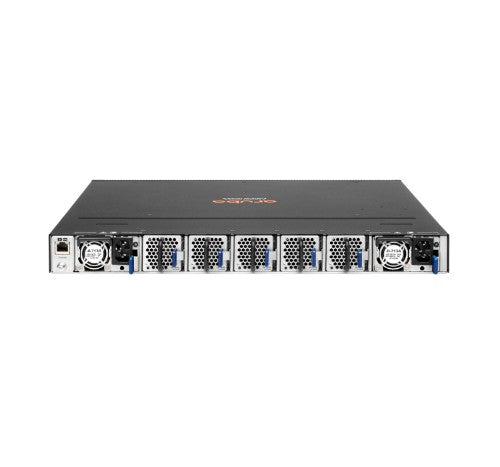

HPE Aruba Networking 8360‑48Y6C v2 Managed L3 1U

HPE Aruba Networking 8360‑48Y6C v2, Managed, L3, Rack mounting, 1U

Description

HPE Aruba Networking 8360‑48Y6C v2. Switch type: Managed, Switch layer: L3. Console port: RJ-45/USB Type-C. MAC address table: 212992 entries, Switching capacity: 4800 Gbit/s. Networking standards: IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s,.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45/USB Type-C
QSFP28 ports quantity	6
SFP28 ports quantity	48
USB Type-A ports quantity	1
Network
Networking standards	IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z
Number of VLANs	4094
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	10000,25000,40000,100000 Mbit/s
10G support	Yes
Virtual LAN features	Private VLAN
IGMP snooping	Yes
MLD entries	7000
Data transmission
MAC address table	212992 entries
Switching capacity	4800 Gbit/s
Throughput	2678 Mpps
Jumbo frames support	Yes
Packet buffer memory	32 MB
Number of VLANs	4094
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP relay, DHCP server
Multicast features
Multicast support	Yes
MLD entries	7000
Protocols
Routing protocols	BGP4, MPLS, OSPF, OSPFv3, RIP-2, RIPng, VRRP
Design
Rack mounting	Yes
Form factor	1U
Airflow direction	Back-to-front airflow
Number of fans	5 fan(s)
Redundant fans support	Yes
Performance
Processor frequency	1800 MHz
Memory type	RAM / Flash
Internal memory	16384 MB
Flash memory	32768 MB
Built-in processor	Yes
Packet buffer memory	32 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Power consumption (max)	725 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 181102.4" (0 - 4600 m)
Heat dissipation	1450 BTU/h
Virtual LAN features
Number of VLANs	4094
VLAN support	Yes
Virtual LAN features	Private VLAN
Weight & dimensions
Width	17.4" (442.5 mm)
Depth	22" (559 mm)
Height	1.73" (44 mm)
Other features
Ethernet LAN data rates	10000,25000,40000,100000 Mbit/s
