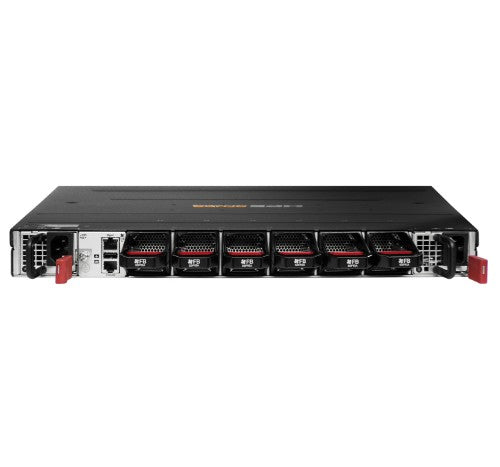

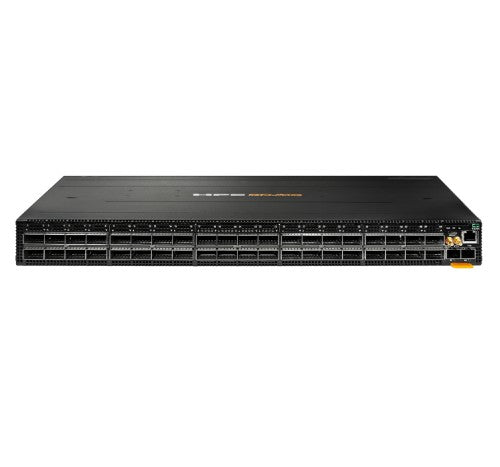

HPE Aruba Networking 9300S 32p QSFP28 100G 8p QSFP‑DD 400G Front‑to‑Back 6xFan 2xAC Bundle Managed L3 1U

HPE Aruba Networking 9300S 32p QSFP28 100G 8p QSFP‑DD 400G Front‑to‑Back 6xFan 2xAC Bundle, Managed, L3, Rack mounting, 1U

Description

HPE Aruba Networking 9300S 32p QSFP28 100G 8p QSFP‑DD 400G Front‑to‑Back 6xFan 2xAC Bundle. Switch type: Managed, Switch layer: L3. Console port: RJ-45/Micro-USB. Switching capacity: 8000 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45/Micro-USB
Fiber ports quantity	40
Fiber optic connector	QSFP-DD, QSFP28
QSFP28 ports quantity	32
Network
Networking standards	IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3bs, IEEE 802.3by, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z
Number of VLANs	4040
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Virtual LAN features	Private VLAN
IGMP snooping	Yes
Data transmission
Switching capacity	8000 Gbit/s
Jumbo frames support	Yes
Number of VLANs	4040
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP relay, DHCP server
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMPv2c, SNMPv3
Routing protocols	BGP4, OSPFv2, OSPFv3, RIP-2, RIPng, VRRP
Design
Rack mounting	Yes
Form factor	1U
Airflow direction	Front-to-back airflow
Number of fans	6 fan(s)
Redundant fans support	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	600 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Heat dissipation	4435 BTU/h
Virtual LAN features
Number of VLANs	4040
VLAN support	Yes
Virtual LAN features	Private VLAN
Weight & dimensions
Width	17.3" (438.4 mm)
Depth	23.2" (590 mm)
Height	1.71" (43.5 mm)
Weight	26 lbs (11.8 kg)
Optical fiber
Fiber optic connector	QSFP-DD, QSFP28
