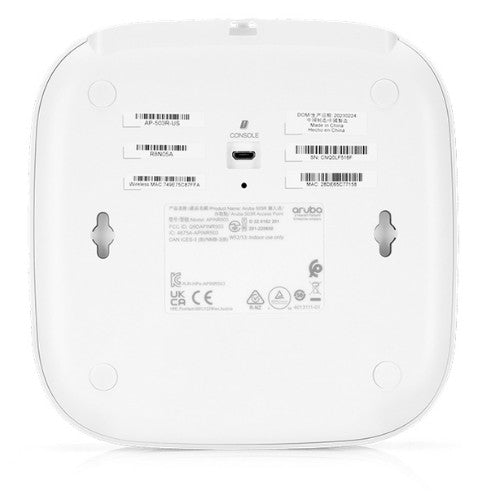

HPE Aruba Networking AP-503R-RW 1490 Mbit/s White

Aruba Networking AP-503R-RW Dual Radio 2x2 Wi-Fi 6 1+2 Ethernet USB Remote Access Point

Description

HPE Aruba Networking 500R Series Remote Access Points enable IT teams to deliver cost-effective Wi-Fi 6 coverage in a compact desktop form factor to hundreds or even thousands of remote workers. With 1.49 Gbps maximum combined speed, these APs are well-suited for small branches and remote work. Two wired ports provide additional device support for work from home and an add-on LTE USB module delivers cellular backhaul capabilities.

Specifications

Performance
Maximum data transfer rate	1490 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	DSSS, OFDM, OFDMA
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az
MIMO	Yes
Features
6 GHz	No
Maximum data transfer rate	1490 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	DSSS, OFDM, OFDMA
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Trusted Platform Module (TPM)	Yes
Security
Security algorithms	WMM, WPA, WPA2, WPA3
Ports & interfaces
USB connector type	Micro-USB B, USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Power
Power consumption (max)	15.4 W
Power supply	18 W
Power over Ethernet (PoE)	No
DC voltage range	12 V
Design
Placement	Desk, Wall
LED indicators	Status
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	5.1 dBi
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Weight & dimensions
Width	5.91" (150 mm)
Depth	5.91" (150 mm)
Height	1.54" (39 mm)
Weight	11.3 oz (320 g)
Package width	9.45" (240 mm)
Package depth	6.69" (170 mm)
Package height	1.97" (50 mm)
Package weight	21.2 oz (600 g)
Packaging data
Package width	9.45" (240 mm)
Package depth	6.69" (170 mm)
Package height	1.97" (50 mm)
Package weight	21.2 oz (600 g)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Storage relative humidity (H-H)	10 - 100%
