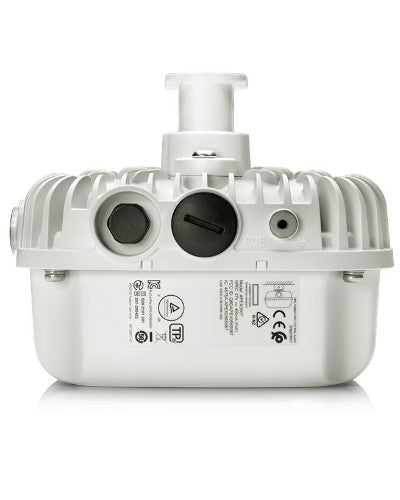

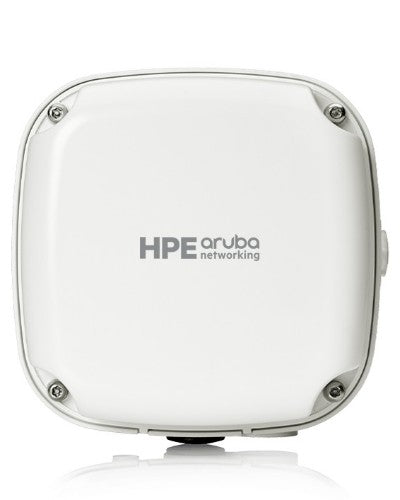

HPE Aruba Networking AP-565EX (ID) Dual Radio 2x2 802.11ax Internal Omni Antennas HazLoc Outdoor AP

HPE Aruba Networking AP-565EX (ID) Dual Radio 2x2 802.11ax Internal Omni Antennas HazLoc Outdoor AP, 2.4 GHz, 5 GHz, 1000 Mbit/s

Reasons To Buy

Cost-Effective Outdoor Wi-Fi 6 For HazLoc Environments

HPE Aruba Networking 560EX Series Hazardous Location Access Points provide Class 1 Division 2 and ATEX Zone 2 certification to operate in hazardous locations, provide up to 1.49 Gbps combined aggregate data rate and high performance wireless connectivity for outdoor hazardous locations.
It supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA), bi-directional multi-user MIMO (MU-MIMO), and target wait time (TWT).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the strong radio signals.

Deploy In Hazardous Locations

HPE Aruba Networking 560EX Series Hazardous Location Access Points are purpose-built to survive in one of the harshest outdoor hazardous locations and can withstand extreme temperatures, persistent moisture and precipitation and are fully sealed to keep out airborne contaminants.
Weatherproof and temperature hardened, this series can handle temperatures ranging from -40 ̊C to +55 ̊C, including full sun deployments.
Class 1 Division 2 and ATEX Zone 2 are certified for one of the most extreme indoor and outdoor areas with ignitable concentrations of flammable gases, vapors, or liquids.
It offers small form factor for flexible deployment.

IoT Ready

HPE Aruba Networking 560EX Series Hazardous Location Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.
The AP supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio.
The target wake time (TWT) improves battery life of IoT devices.
The HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

Enhanced Security

HPE Aruba Networking 560EX Series Hazardous Location Access Points offers dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
This AP simplifies policy enforcement by using PEF to encapsulate traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the 560EX series includes an installed trusted platform module (TPM) for protected storage of credentials and keys, and boot code.

Description

HPE Aruba Networking AP-565EX (ID) Dual Radio 2x2 802.11ax Internal Omni Antennas HazLoc Outdoor AP. 2.4 GHz, 5 GHz, Ethernet LAN data rates: 1000 Mbit/s

Specifications

Performance
Ethernet LAN data rates	1000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), peak data rate 1.49 Gbps, maximum data rate 1.78 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Certification	CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED ac (with wave 2 features) Wi-Fi CERTIFIED Location Class 1 Division 2 certified ATEX Zone 2 certified
MIMO	Yes
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.1.0; HPE Aruba Networking Wireless Operating System 10
Features
Ethernet LAN data rates	1000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), peak data rate 1.49 Gbps, maximum data rate 1.78 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Bluetooth	Yes
Bluetooth version	5.0
MIMO	Yes
MACsec support	No
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.1.0; HPE Aruba Networking Wireless Operating System 10
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Design
Certification	CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED ac (with wave 2 features) Wi-Fi CERTIFIED Location Class 1 Division 2 certified ATEX Zone 2 certified
Recommended usage	Outdoor
Technical details
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
Certification	CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED ac (with wave 2 features) Wi-Fi CERTIFIED Location Class 1 Division 2 certified ATEX Zone 2 certified
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Other features
I/O ports	E0: 10/100/1000BASE-T (RJ-45) USB-C console interface
System requirements
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.1.0; HPE Aruba Networking Wireless Operating System 10
