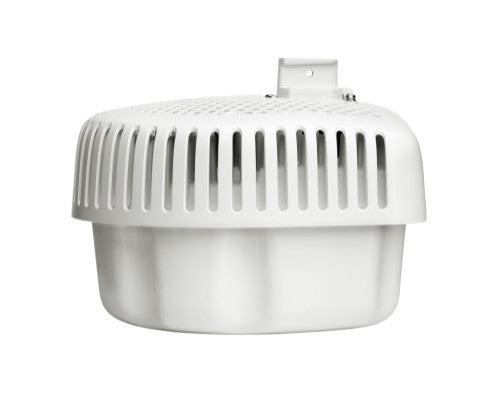

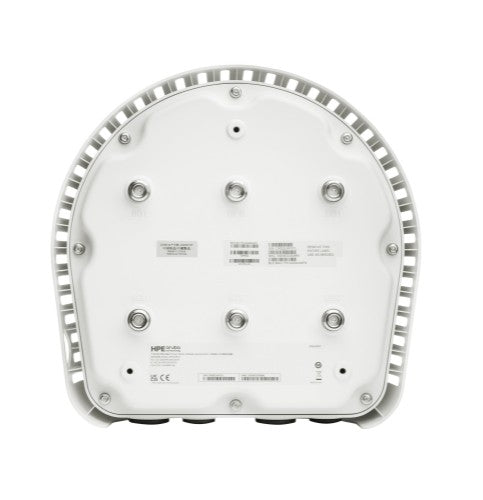

HPE Aruba Networking AP-674 (JPF1) Tri Radio 2x2 Wi-Fi 6E Connectorized TAA Outdoor AP

HPE Aruba Networking AP-674 (JPF1) Tri Radio 2x2 Wi-Fi 6E Connectorized TAA Outdoor AP, 2.4 GHz, 5 GHz, 6 GHz, 2500,5000 Mbit/s

Reasons To Buy

High Performance Outdoor Wi-Fi 6E

HPE Aruba Networking 670 Series Outdoor Access Points operate as standard power (SP) devices and deliver greater efficiency with OFDMA, MU‐MIMO, and target wake time (TWT) to extend the battery life of devices.
The 670 series provides fast performance with 6 GHz band that delivers up to 1200 MHz additional capacity and 3.6 Gbps peak combined data rate to better support high-bandwidth, low-latency applications such as high-definition video.
It is self-locating with embedded GPS receiver and will operate as standard power (SP) devices that require an automated frequency coordination service (AFC) to protect incumbent outdoor services.
Enhanced wireless experience with ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signals.
It offers convenient wired connectivity with fast 2.5GbE uplink port and 1GbE port.

Simplified Access with Enhanced Security

The HPE Aruba Networking 670 Series Outdoor Access Points offer enhanced security with dynamic segmentation to mitigate the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated.
It offers network protection with stronger encryption and authentication with WPA3, secure credential/key storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEFs).
It provides simplified policy enforcement with the PEF that encapsulates all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, our access points include installed TPM for secure storage of credentials, keys, and boot code.

Ruggedized and Ready for IoT

The HPE Aruba Networking 670 Series Outdoor Access Points include integrated high-power Bluetooth and Zigbee radios to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors.
Ruggedized outdoor access points support extended temperatures to address the requirements of a broad range of surface, subsurface, and offshore applications. This series includes 670EX outdoor models that are designed for the most extreme, hazardous locations.
The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention with other clients.
Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi, Bluetooth, and Zigbee radios to operate at higher capacity without the impact of interference.
The intelligent power monitoring (IPM) provides insights into energy consumption. Our APs continuously monitor and report hardware energy usage. Unlike the other vendors APs, our APs can also be configured to enable or disable capabilities based on available PoE power.

Description

HPE Aruba Networking AP-674 (JPF1) Tri Radio 2x2 Wi-Fi 6E Connectorized TAA Outdoor AP. 2.4 GHz, 5 GHz, 6 GHz, Ethernet LAN data rates: 2500,5000 Mbit/s

Specifications

Performance
Ethernet LAN data rates	2500,5000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), peak and maximum peak data rate 3.9 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Certification	Wi‐Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6) Class 1 Div 2 (EX models only) ATEX Zone 2 (EX models only) IECEx (EX models only)
Compatible operating systems	HPE Aruba Networking Wireless Operating System 10.7.0.0 (AP-675, AP-677) HPE Aruba Networking Wireless Operating System 10.7.1.0 (AP-674, AP-679) HPE Aruba Networking Wireless Operating System 8.12.0.0 (Only AP-675, AP-677, and AP-679) HPE Aruba Networking Instant OS 8.12.0.0 (Only AP-675, AP-677, and AP-679, no 6 GHz support with Instant OS)
Features
6 GHz	Yes
Ethernet LAN data rates	2500,5000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), peak and maximum peak data rate 3.9 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
MACsec support	No
Compatible operating systems	HPE Aruba Networking Wireless Operating System 10.7.0.0 (AP-675, AP-677) HPE Aruba Networking Wireless Operating System 10.7.1.0 (AP-674, AP-679) HPE Aruba Networking Wireless Operating System 8.12.0.0 (Only AP-675, AP-677, and AP-679) HPE Aruba Networking Instant OS 8.12.0.0 (Only AP-675, AP-677, and AP-679, no 6 GHz support with Instant OS)
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Design
Certification	Wi‐Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6) Class 1 Div 2 (EX models only) ATEX Zone 2 (EX models only) IECEx (EX models only)
Recommended usage	Outdoor
Antenna
Antenna direction type	Omni-directional
Technical details
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
Certification	Wi‐Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6) Class 1 Div 2 (EX models only) ATEX Zone 2 (EX models only) IECEx (EX models only)
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Other features
I/O ports	Ethernet wired network port (RJ-45) SFP Fiber port USB 2.0 host interface (Type C connector) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, USB-C physical jack)
System requirements
Compatible operating systems	HPE Aruba Networking Wireless Operating System 10.7.0.0 (AP-675, AP-677) HPE Aruba Networking Wireless Operating System 10.7.1.0 (AP-674, AP-679) HPE Aruba Networking Wireless Operating System 8.12.0.0 (Only AP-675, AP-677, and AP-679) HPE Aruba Networking Instant OS 8.12.0.0 (Only AP-675, AP-677, and AP-679, no 6 GHz support with Instant OS)
